| 原産地: | 中国(本土) | 銘柄: | hcc | モデル番号: | Hcc-pcba080401001 | Min.線幅: | 0.25mm | 基材: | fr4 | 表面の仕上げ: | の鉛フリーhasl | Min.行送り: | 0.25mm | 板厚さ: | 1.6mm | Min.穴のサイズ: | 0.35ミリメートル | 銅の厚さ: | 0.5オンス | 色: | 緑 | コンポーネントマスク: | 白 |
包装
| 包装: | 真空、 シールパッケージ |
Certification:
ISO9001
ISO14001
TS16949
REACH
UL E332411
PCB Day Ability: 1000 square meters
PCB assembly: experienced electronic components purchase team and experienced operator for assembly online job. PCB assembly with RoHS approval and high quality.
Exporter time: more than 10 years
PCB specification parameters:
Specifications | Details |
Material Type | FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Teflon,Taconic, Rogers*, Polyimide*, Kapton,Dupont |
Material Thickness ( in inches) | 0.062”, 0.080”, 0.093”, 0.125”, 0.220”, 0.047”, 0.031”, 0.020”, 0.005" |
Layer count | 1 to 28 Layers |
Max. Board Size | 23.00” x 35.00”(580mm*900mm) |
IPC Class | Class II, Class III , Class 1 |
Annular Ring | 5 mil/side or Greater (Min. Design) |
Finish Plating | Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other |
Copper Weight | 0.5OZ-7OZ |
Trace/Space Width | 3 Mils or Greater |
Drill Clearance | 0.1mm(laser drilling) |
Plated Slots | 0.036 or Greater |
Smallest Hole (Finished) | 0.1mm or Greater |
Gold Fingers | 1 to 4 Edge (30 to 50 Micron Gold) |
SMD Pitch | 0.080” - 0.020” - 0.010” |
Soldermask Type | LPI Glossy, LPI-Matte, SR1000 |
Soldermask Color | Green, Red, Blue, Black, White, Yellow, |
Legend Color | White, Yellow, Black, Red, Blue |
CNC Route Point | Any |
Minimum Route Width | 0.031” |
Scoring | Straight Lines, Jump Scoring, Panel Edge to Edge, CNC* |
Body Gold | HARD*, IMMERSION* (up to 50 MICRON GOLD) |
Data File Format | Gerber 274x with embedder aperture |
Fab. Drawing Format | DXF, HPGL, DWG, PDF, Gerber |
E.T Testing | Flying Probe, Single Sided, 1up Plate, Clampshell, Net List |
Counter Sink / Counter Bore | Availiable up to 0.250 Diameter |
Control Impedence | Yes |
Blind Vias / Buried Vias | Yes |
Peelable Mask | Yes |
Carbon | Yes |

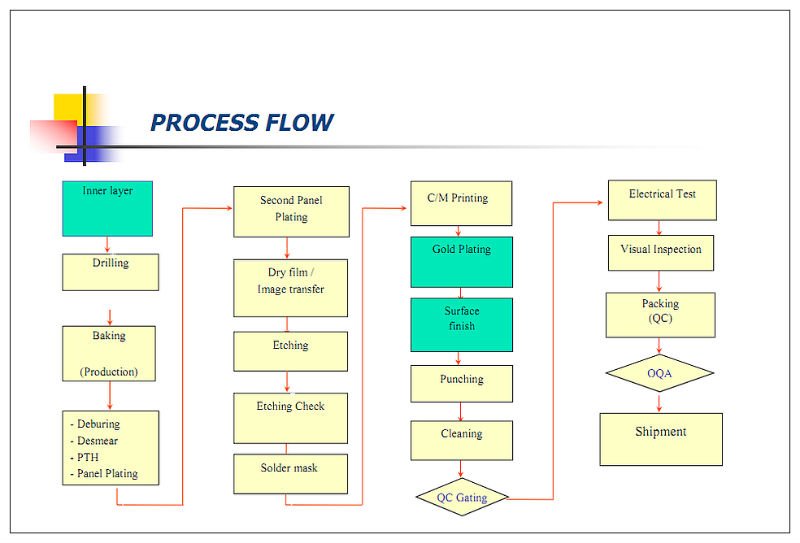

PCB production process flow:
DHL, UPS, TNT, FedEx, Air shipping, Oeach shiping or HCC forwarder shipping with lower cost.
All your request will be our first rules of working.
Please let's be good partner for your better busniness from now on.
