| 原産地: | 米国 | モデル番号: | IHLP2525CZERR82M01 | 包装: | テープ&リール(tr) | 標準パッケージ: | 2000 | 在庫: | 大型株式 |
包装
| 包装: | テープ & リール (tr) |
Product Information:
| Manufacturer Part Number | IHLP2525CZERR82M01 |
|---|---|
| Description | INDUCTOR POWER .82UH 13A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Product Photos | IHLP 0.270"L x 0.255" W |
|---|---|
| Product Training Modules | IHLP Inductor Series |
| Video File | IHLP® Power Inductor Saturation Current Performance Test |
| Catalog Drawings | IHLP2525CZER Series Side IHLP2525CZER Series Footprint IHLP2525CZER Series Top |
| Featured Product | IHLP® Surface-Mount Power Inductors |
| Standard Package | 2,000 |
| Category | Inductors, Coils, Chokes |
| Family | Fixed Inductors |
| Series | IHLP-2525CZ-01 |
| Packaging | Tape & Reel (TR) |
| Type | Molded |
| Material - Core | - |
| Inductance | 820nH |
| Tolerance | ±20% |
| Current Rating | 13A |
| Current - Saturation | 24A |
| Shielding | Shielded |
| DC Resistance (DCR) | 8 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Operating Temperature | -55°C ~ 125°C |
| Frequency - Test | 100kHz |
| Mounting Type | Surface Mount |
| Package / Case | Non Standard |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Supplier Device Package | - |
| Dynamic Catalog | IHLP® Series |
| Other Names | 541-1005-2 IHLP2525CZERR82M01-ND |
Payment:
1.We accept Western unio, T.T in advance, Escrow, PayPal and etc..
2.If you prefer other payways,pls contact us.
Replacement:
We provide 90~120 days warranty of quality after sale
Shipping:
We will ship the items by DHL/UPS/EMS/FEDEX...within 1-3 working days after payment reaches.
Testing:
Our technicians test the original parts one by one using special device.

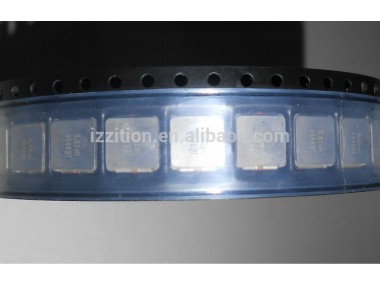

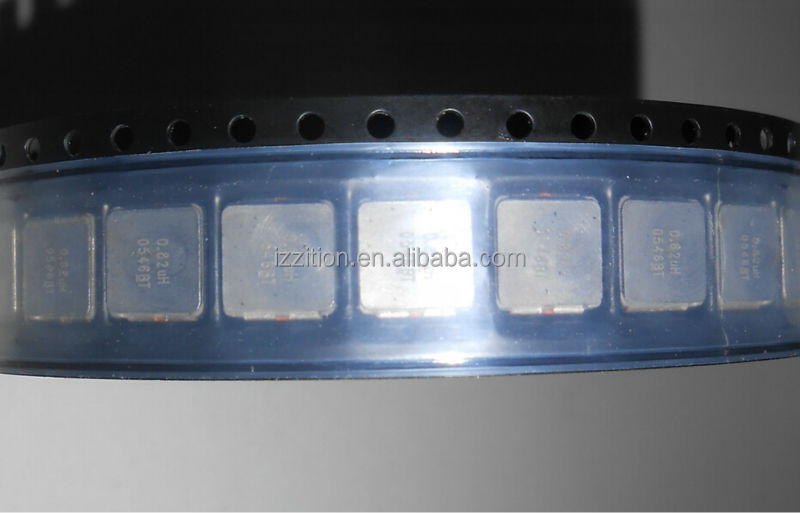

Real Picture Show:
