• 油井画面/砂利パック飲料水用の水も画面-フィルターメッシュ
    商品番号: 10653001
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: 華東 モデル番号: Hd2-1
    厚さ: 3-20mm タイプ: フィルターシリンダー 長さ: 1-5.8m
    材料: 金属 穴の形: 正方形 使用法: 液体フィルター
    フィルター評価: 98% 幅: 不等 エンド接続: スレッド/プレーン/flang
    技術的な: 電縫 認証: iso を行う: 159-2000mm
    利点: 直接工場から 製品名: 砂利パック水も画面 材料: ステンレス鋼や炭素鋼

    包装

    包装: 以内にシングルbuddleバッグにしてから、 木製ケース

    Infro--- gravel pack water well  screen

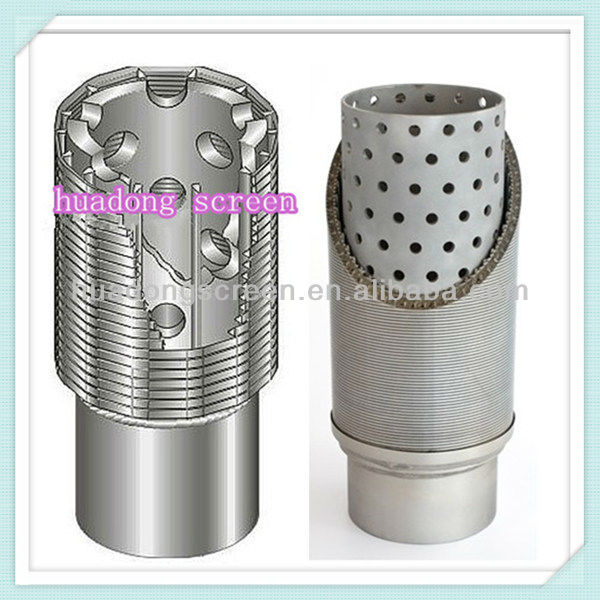

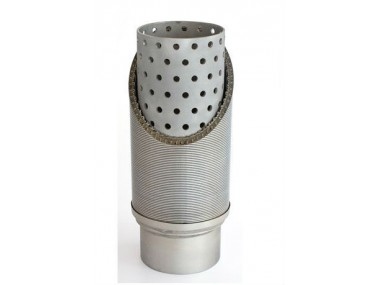

    The pre-packed screen consist of three parts:outer screen, pre-packed gravel,base pipe that is perforated pipe.

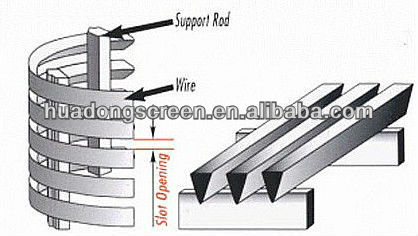

    The perfroated base pipe is covered by v wire wrapped screen,whose diamater is smaller than the outer jacket. Between the two layers of jackets, an annular void is packed with silica sand with the appropriate size. The sand is coated by resin or ceramic beads. The gauge of the jacket wire is determined by the packed sand, while the size of the sand is determined by the formulation particle size distribution.



    油井画面/砂利パック飲料水用の水も画面仕入れ・メーカー・工場 油井画面/砂利パック飲料水用の水も画面仕入れ・メーカー・工場 油井画面/砂利パック飲料水用の水も画面仕入れ・メーカー・工場 油井画面/砂利パック飲料水用の水も画面仕入れ・メーカー・工場 油井画面/砂利パック飲料水用の水も画面仕入れ・メーカー・工場 油井画面/砂利パック飲料水用の水も画面仕入れ・メーカー・工場 油井画面/砂利パック飲料水用の水も画面

     If our products meet your requirements, please do not hesitate to contact us
