| 原産地: | 中国(本土) | 銘柄: | まだ | モデル番号: | YET104BK | 使用法: | ユニバーサル | 製品名: | ローリングドアモータートランスミッタ315/433 mhz | 動作電流: | ミリアンペア | 作業voltge: | 12ボルト | 秤量(g) t: | 30.5 | 打ち上げ距離: | 50-100メートル | 特性: | 高い安定性と低消費電力 | 送信spead: | 50-60 Khz | エンコーディングタイプ: | 固定/学習/ローリング/コピーコード(オプション) | 作業チップ: | 2262.2240、301,1527、ht6p20b、HT6O20Dオプション |
包装
| 包装: | カートン、500ピースあたりケース、カートンのサイズ: 48*38*26センチ、gw = nw + 1.8キログラム |

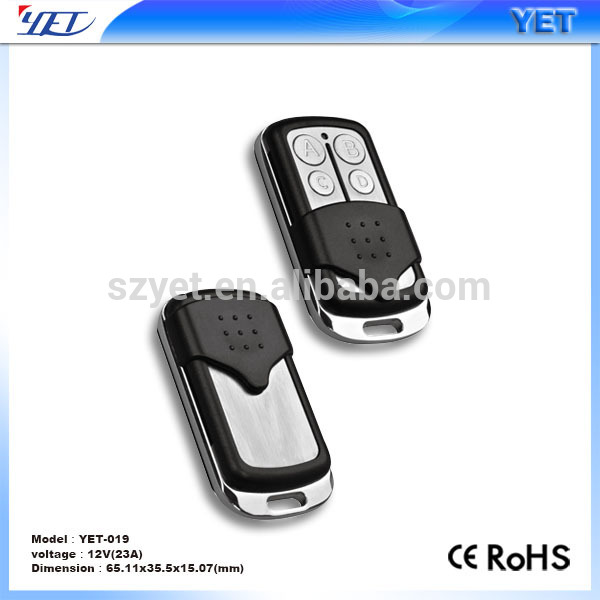

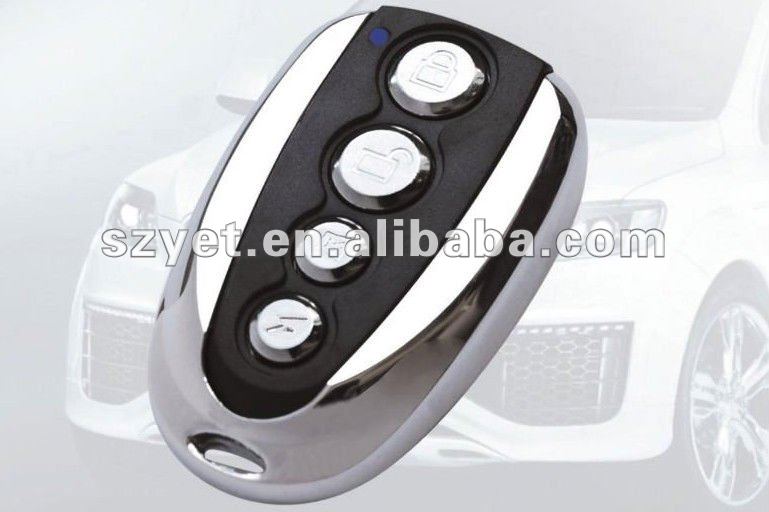

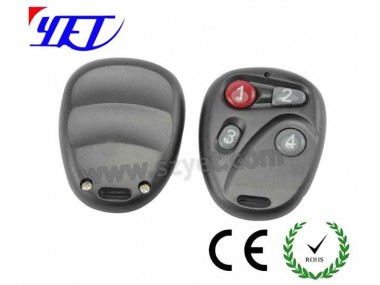

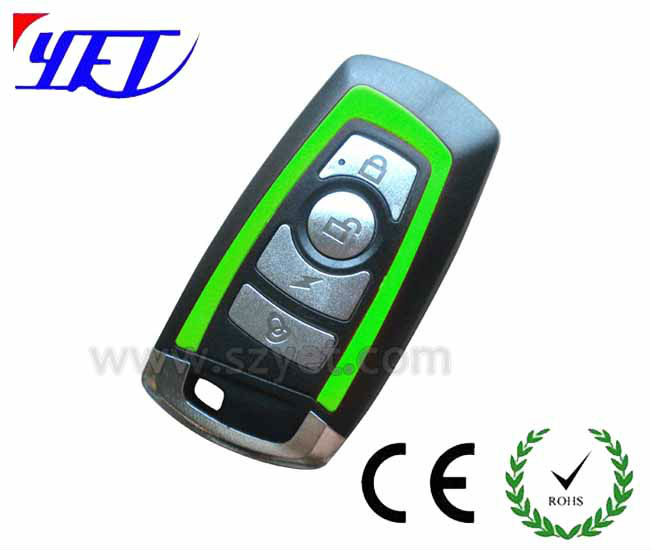

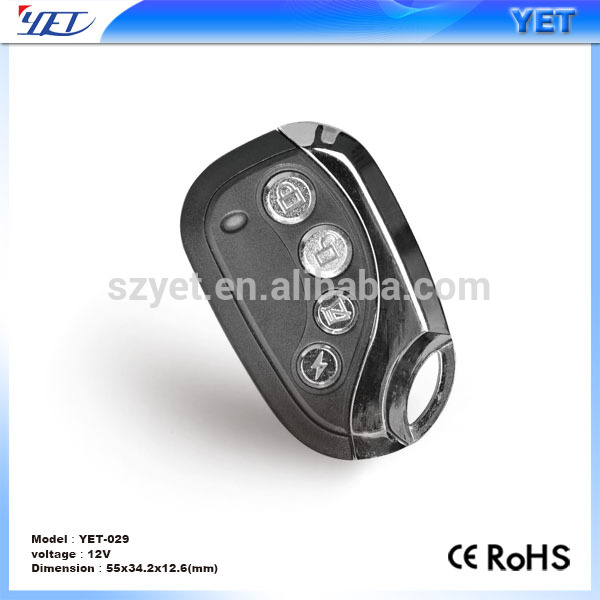

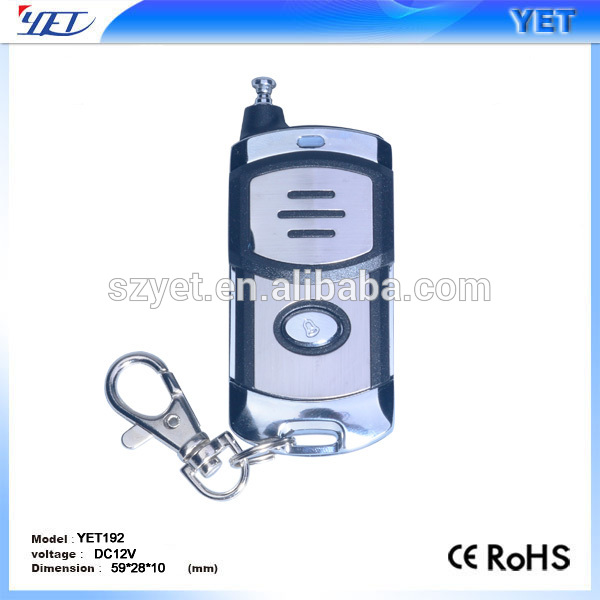

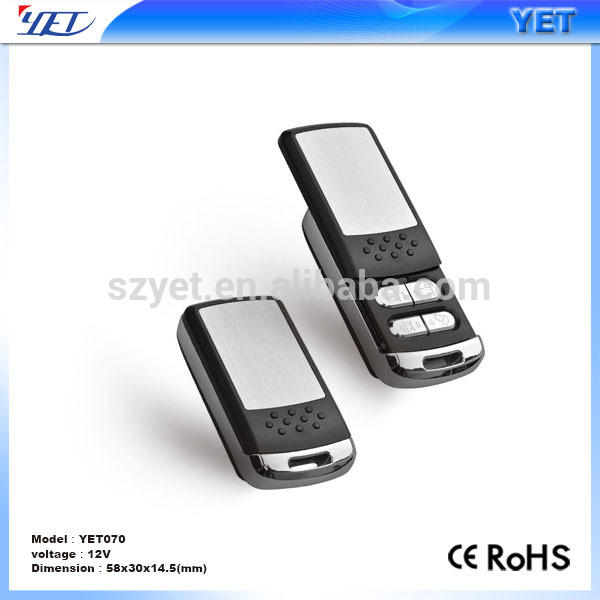

rolling door motor transmitter 315/433mhz
Wireless remote control for car alarm,auto alarm,motorcycle alarm,led light,wireless romote control for warehouse door,carbarn door and gate door,smart key,civil security as house security,commercial security,industrial area by fixed code learning code rolling code and other codes. With low consumption but high efficiency, it will be more and more important to human life
| If you are extending existing systems or adding new users to existing systems, we advise you to use transmitters identical to those currently in use. | ||||||||
| Characteristics: | ||||||||
| 1.Various crust for your choice | ||||||||
| 2.Materail:metal and PVC | ||||||||
| 3.Encoding type:Fixed code/learning code /rolling code(optional) | ||||||||
| 4.High stability:Adopting imported SMT component SAW and super high frequency audion(6.5G) | ||||||||
| Main technical data: | ||||||||
| 1.Operating voltage:DC6v | ||||||||
| 2.Operating Current:<=12mA | ||||||||
| 3.Operation frequency:303MHZ/310MHZ/315MHZ/433.92MHZ optional | ||||||||
| 4.Transmit Power>=10mW | ||||||||
| 5.Transmission speed:50-60KHz | ||||||||
| 6.Frequency windage: ±0.2MHz | ||||||||
| 7.Transmission distance:100meters (open space) | ||||||||
| 8.Oscillation resistance:Per customer's request | ||||||||
| 9.Chip and operating mode:Hopping code(HC301,300,200 and so on) | ||||||||
| a,Fixed code(2262,2260 and so on) | ||||||||
| b,Learning code(1527,2240,HT6P20B,HT6P20D and so on) | ||||||||
| c,Copy code |
Copy procedure of Copy code remote control
1, Code delete: Push any two buttons at the same time about 10 sceonds. As you see the Led light flashing (about 2 second) and then slowly flashing (about 1 second), which means delet successful and the led light would never bright again as you push the 2 buttons at the same time.
2, Copy:Put the two remote control together, first, push one of copy remote control button,the led light flash one time, then push one button of the copied remote control, it is success as you see the led light is brighting all the time. Use the same way to copy other buttons.PS:If it can not work within 5 second, pls try it again.
3, With regard to the difficult copy remote control, you can change the copied remote control position around the copy remote control to find the best copy position.
4, The other copy ways as the same of the above.
