| 原産地: | 中国(本土) | 銘柄: | 南陽 | モデル番号: | Jl2- シリーズ- 59ミリメートル | 色: | 顧客の要求に応じて | 証明書: | ccc、 ce、 tuv、 sgs、 iso |
包装
| 包装: | 輸出標準的なパッキング |

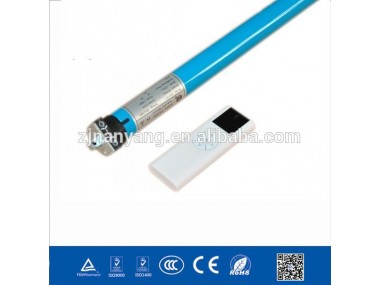

59mm AC Tubular Motor
This type of motor is adopted international advanced technology for development and manufacture, operation safe, concise design and convenient installation. It is apply to doors and shutters of commerce, factory, autombile repairment store and metting room, etc.
Characteristics |
Model | Torque (N..M) | Speed | Rated Power(W) | Load Current(A) | Time Rating(min) | Limit | Complete Length(mm) | Complete Weight(kg) |
JL2/60-W | 60 | 12 | 270 | 1.3 | >4 | 25 | 637 | 5.3 |
JL2/80-W | 80 | 12 | 310 | 1.5 | >4 | 25 | 637 | 5.3 |
JL2/100-W | 100 | 12 | 410 | 1.82 | >4 | 25 | 637 | 5.3 |
JL2/110-W | 110 | 12 | 430 | 2.0 | >4 | 25 | 637 | 5.3 |
JL2/120-W | 120 | 12 | 450 | 2.2 | >4 | 25 | 637 | 5.3 |
JL2/140-W | 140 | 9 | 450 | 2.2 | >4 | 25 | 637 | 5.3 |
JL2/60-M | 60 | 12 | 270 | 1.3 | >4 | 25 | 685 | 7.5 |
JL2/80-M | 80 | 12 | 310 | 1.5 | >4 | 25 | 685 | 7.5 |
JL2/100-M | 100 | 12 | 410 | 1.82 | >4 | 25 | 685 | 7.5 |
JL2/110-M | 110 | 12 | 430 | 2.0 | >4 | 25 | 685 | 7.5 |
JL2/120-M | 120 | 12 | 450 | 2.2 | >4 | 25 | 685 | 7.5 |
JL2/140-M | 140 | 9 | 450 | 2.2 | >4 | 25 | 685 | 7.5 |
