| 機械で造るCNCまたはない: | CNCの機械化 | 原産地: | 中国(本土) | 銘柄: | aolu | 物質的な機能: | アルミニウム | 機械で造るマイクロまたはない: | マイクロ機械化 | タイプ: | ブローチング, 他の機械化サービス, レーザーの機械化, エッチング/化学の機械加工, ラピッドプロトタイピング, 回転, ワイヤEDM, 製粉 |
包装
| 包装: | 木製パレットや木泡が付いているカートンまたはお客様のご要望に応じて。 |

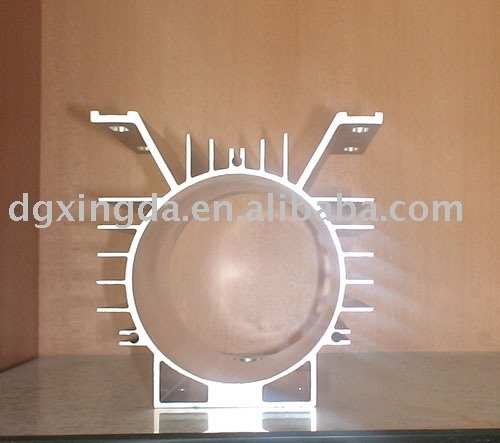

profile precision parts
| Aluminium alloy composition profile | ||||||
| Alloy | Si | Mg | Fe | Cu | Mn | Zn |
| 6063 | 0.2-0.6 | 045-0.9 | <0.35 | <0.1 | <0.1 | <0.1 |
| 6061 | 0.4-0.8 | 0.8-1.2 | <0.7 | 0.15-0.4 | 0.15 | 0.25 |
| 6063B | 0.2-0.6 | 045-0.9 | <0.35 | <0.1 | <0.1 | <0.1 |
| 6060 | 0.3-0.6 | 0.35-0.6 | 0.1 | 0.1 | <0.1 | 0.15 |
| 6005 | 0.6-0.9 | 0.4-0.6 | 0.35 | 0.1 | 0.1 | <0.1 |
| 6N01 | 0.4-0.9 | 0.4-0.8 | <0.35 | <0.35 | <0.5 | <0.25 |
| Material | Alloy 6061,6063,6063B,6060,6005,6N01 | |||||
| Temper | T3 TO T8 | |||||
| production processing | make mould -casting to aluminium rod -extrusion -treatment for hardness resistance-aluminium finish machining -surface treatment-package | |||||
| Machining category | cutting-drilling-punching-tapping-angle of chamfer-cnc | |||||
| surface treament category | milling-polish-anodise(include color for silver, red, champagne, black, blue, bronze and so on)-brush-sandblasting-powdercoated and so on . | |||||
| Mould processing | make drawing-confirmed drawing-add material -lathe-drilling-milling-polish-treatment for heat resistance- wire cutting-electrial spark -assemble mould | |||||
| MOQ | 1000kg ,less than 1000kg pay 50usd as start machine cost | |||||
| Package | wooden pallet with polybag or carton and outside wrap by PE film | |||||
| Delivery time | 1)Die/Mould 7 to 10 days after down payment & drawings are /confirm/ied. 2)15 days after sample confirmed & down payment. | |||||
| Term of payment | 1)30% to 50% t/t deposit in advance,blance 50% to 70% paid before goods leave factory or goods before shipment . 2)Settlement term charge by final actual weight or by theoretical weight as per drawings. | |||||
| Certifcate | ISO 9001:2000 ISO 14001:2004 ,ROHS,SGS as well as more than 100pcs of factory certificate of honor etc | |||||

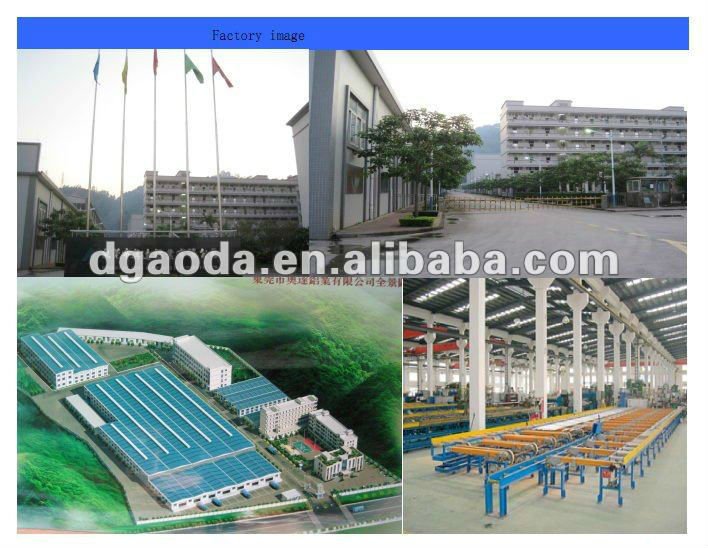

Factory capacity | 1)factory cover area:more than 78,000 square meters 2)Date of found year:1993 3)Employee:More than 500 employee, & more than 10% of them technologists | |||||
| Machine capacity | 1)Extrusion line:18 set of 500-3000tons imported extrusion lines, annual output capacity is more than 30,000 tons. 2)Machining equipment:18 production line .15 sets of imported CNC lathe,80sets of punching,drilling,tapping machines,with more than 36,000 product apply in electronic ,building,machinery,automobile,camera monitor etc . 3)Advance test equipment and lab :spectrometric analyzer, metallurgical analyzer, imported projector measuring instrument, Rockwell hardness meter, clamp type hardness meter, desk type hardness meter, eddy-current film tester, colorimeter, electron microscope and so on | |||||
| Main Market & Projects | Our main market is foucs on America, Japan, EU, Africa, Singapore, Hong kong, Taiwan, South Asia and so on. Its main domestic customers have Shenzhen Huowei, Zhongxing, foxconn, Konka, Huizhou TCL, etc. | |||||
