| モデル: | Fl-20-40 | タイプ: | 抗力のチェーン | ブランド: | fl | 材料: | 強化ナイロンpa66 | 名: | 20*40ケーブルのドラッグチェーン | 元の場所: | 浙江、 中国 | ミニサイズ: | 7*7mm | 最大サイズ: | 80*300mm | 温度範囲: | -40-- 130℃ | 構造: | 全閉外/半- 同封/ブリッジ | 引張強さ: | 180n/mm2 | アプリケーション: | cncマシン、 等 | パッキング: | カートン | oem: | 利用可能な |
包装
| 包装: | プラスチックのケーブルドラッグチェーンは20*40カートンでパッケージ化またはあなたの条件に従って。 |
20 series 20*40 plastic cable drag chain
Detailed information of products
Plastic cable drag chains are widely used in the machine tools wher reciprocating motion existing,to drag and protect cables,oil pipes,gas tubes and water tubes.
Our drag chains are made of Reinforced nylon PA66,with the advantages:
1)Wearing resistant, high temperature resistant.
2)Non-deformation, low noise, easy to assemble and dismantle.
3)a full range of size.
Details of 20 series:
Inside dimension | Outside dimension | Bending radius |
20*30 | 28*45 | R=50 |
20*40 | 28*55/35*57 | R=45/55/75/100/125/150 |
20*50 | 35*67 | R=55/75/100/125/150 |
20*65 | 35*82 | R=55/75/100/125/150 |
20*75 | 35*92 | R=55/75/100/125/150 |
20*85 | 35*102 | R=55/75/100/125/150 |
20*100 | 35*117 | R=55/75/100/125/150 |
Other side for your choice:
Model | Inside | Dimension |
|
|
|
| Bending radius |
7series | 7*7 |
|
|
|
|
| R=18/28 |
10series | 10*10 | 10*15 | 10*20 |
|
|
| R=28 |
15series | 15*15 | 15*20 | 15*30 | 15*40 | 15*50 |
| R=28/38 |
18series | 18*18 | 18*25 | 18*37 | 18*40 | 18*50 |
| R=28/38 |
20series | 20*30 | 20*40 | 20*65 | 20*75 | 20*85 | 20*100 | R=55/75/100/125/150 |
25series | 25*40 | 25*50 | 25*65 | 25*75 | 25*85 | 25*100 | R=55/75/100/125/150 |
30series | 30*40 | 30*50 | 30*65 | 30*75 | 30*85 | 30*100 | R=75/100/125/150 |
35series | 35*50 | 35*75 | 35*100 | 35*125 | 35*150 | 35*175 | R=75/100/150/175/200/250 |
45series | 45*50 | 45*75 | 45*100 | 45*125 | 45*150 | 45*175 | R=75/100/150/175/200/250 |
55series | 55*100 | 55*125 | 55*150 | 55*175 | 55*200 | 55*250 | R=100/150/200/300/400/500 |
65series | 65*100 | 65*125 | 65*150 | 65*175 | 65*200 | 65*250 | R=150/200/250/300/400/500 |
80series | 80*100 | 80*125 | 80*150 | 80*175 | 80*200 | 80*300 | R=200/250/300/350/400/500 |

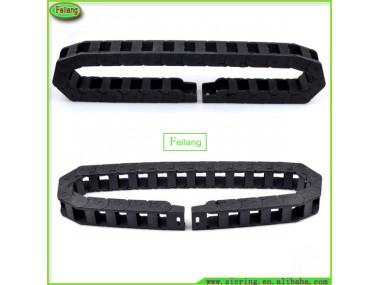

Product pictures
Material
The products are made of authentic reinforced nylon Pa66.
Why choose us
1.Feilang company,specialized exporter,was established in 2009,enjoying a good reputation both at home and abroad.
2.General agency,professional team,provide competitive price and best pre- and after service.
3.Retail and sample order are acceptable.
For the honest management,good pre- and after service,competitive price and reliable quality,We are the best business partner to you.
Payment terms and shipping
We supply 20*40 plastic cable drag chain at good prices and with the best pre- and after service.
Any questions please feel free to contact us,if I'm off of keyboard,please leave me a message.
Thank you and hope to cooperate with you.
