| 原産地: | 中国(本土) | 銘柄: | TTモーター | モデル番号: | GM12-N20VA | 処理: | ダイカストは | 形: | 他 | 標準的なか標準外: | 標準 | 材料: | 金属 | 歯のプロフィール: | 螺旋形ギヤ | 圧力角度: | 15 | 電圧: | 2.4--6ボルト | 負荷速度: | 8--200のRPM | 負荷トルク: | 0.1--1.2 Kg.cm | 負荷出力: | 0.25--0.34 W | 停止のトルク: | 0.3--5.4 kg.cm | 縮小率: | 10--1000年 |
包装
| 包装: | 25-30日 |
12v dc motor,12mm gear motor,Can be equipped with encoder
12mm DC planetary gear motor:
12mm dc gear motor,GM12-N20
1.Widely used in robot,lock. Auto shutter, USB fan,Slot machine,Money detector,
Coin refund devices,Currency count machine, Towel dispensers,
Automaitic doors,Peritoneal machine,Automatic TV rack,
Office equipemt ,Household appliances,Automatic
2.Voltage:1.5-12V
3.Speed:10-1000RPM
4.Low noise,low current no spark
5.gearbox Reduction Ratio:3-1000

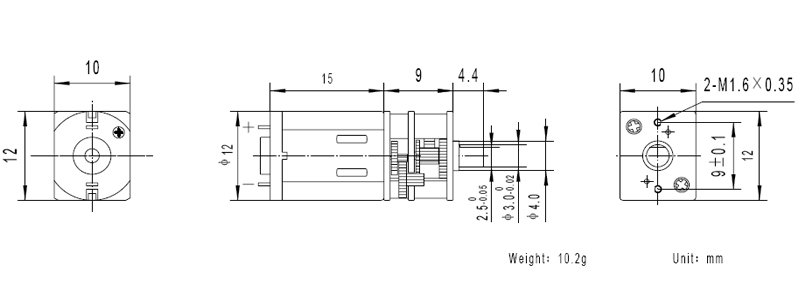

6.size:12.0*24.0*10.0 mm,just 24.0 mm length mini motor
7.We can offer the samples first ,the MOQ is 100 pieces ,the delivery time is 15-20 days.
| Typical Applications | Description |
| Power Lock Electronic lock, Optic equipment, Medical apparatus | 12GF1215 Geared motor reduction ratio: 10 30 50 63 100 150 210 250 298 |
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | N.m | Kg.cm | w | N.m | Kg.cm | A | |||
| GM12-N20VA | 13115-50 | 1.5-3.0 | 2.4 | 310 | 0.20 | 240 | 0.45 | 0.013 | 0.135 | 0.34 | 0.049 | 0.5 | 1.4 |
| 13115-100 | 1.5-3.0 | 2.4 | 152 | 0.16 | 120 | 0.42 | 0.026 | 0.27 | 0.34 | 0.098 | 1.0 | 1.4 | |
| 13115-298 | 1.5-3.0 | 2.4 | 50 | 0.15 | 38 | 0.39 | 0.078 | 0.80 | 0.34 | 0.294 | 3.0 | 1.4 | |
| 08260-50 | 2.0-5.0 | 5.0 | 285 | 0.10 | 218 | 0.24 | 0.012 | 0.13 | 0.30 | 0.039 | 0.4 | 0.6 | |
| 08260-100 | 2.0-5.0 | 5.0 | 145 | 0.10 | 110 | 0.22 | 0.026 | 0.26 | 0.30 | 0.088 | 0.9 | 0.6 | |
| 08260-298 | 2.0-5.0 | 5.0 | 45 | 0.08 | 35 | 0.20 | 0.076 | 0.77 | 0.30 | 0.255 | 2.6 | 0.6 | |
