| 原産地: | 中国(本土) | 銘柄: | bf | モデル番号: | カスタマイズされた | 処理: | 精密鋳造 | 形: | 他の | 標準的なか標準外: | 標準外 | 材料: | プラスチック | 歯のプロフィール: | ヘリカルギア/平歯車/ヘリンボーンギア | 圧力角度: | 20 ° | 素材: | ポンポン/pa/abs | 製品: | 平歯車 | 精密公差: | +/-0.0001 | 色: | さまざまな | 方向のターニング: | 左手/右手 | 重量: | 36グラム/100ピース(例えば) | 生産能力: | 1,200,000ピース/週 | 拒否比: | < 1 ppm | 精度: | din、jis、gb/t 10095、ansi | 認証: | iso9001、rohs |
包装
| 包装: | 平歯車詳細なパッキング:インナージップロック袋+カートン梱包またはクライアントの要件 |

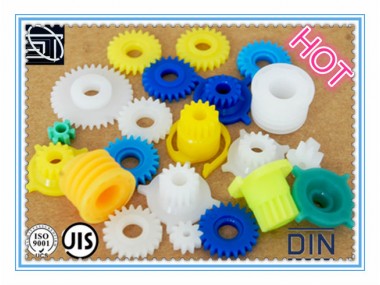

Product Description
Product | spur gear (take model P25 for example) | ||
Dimension | Face width | 12.25mm | |
Bore diameter | 6mm | ||
Bore diameter tolerance | ±0.001 inches | ||
Pitch Diameter | 11.051mm | ||
Hub diameter | 6.8mm | ||
Pressure angle | 20° | ||
The number of teeth | 22 | ||
Helix angle & Direction | 5°30′ left hand | ||
Addendum modification | +0.199 | ||
Accuracy | JIS B 1702 | ||
Concentricity | <0.05mm | ||
Raw material | POM4520 | ||
color | Blue | ||
Physical features
| Technology | Injection molding | |
Working Temperature | the first period: 190°c±10°c the second period: 185°c±10°c the third period: 170°c±10°c | ||
Equipment&Inspection | KT-100 injection molding machine, P25 molding machine, micrometer, dial indicator, caliper,measuring projector | ||
The whole time | 17.5s | ||
Disposable | 4 pieces | ||
Certificate | ISO9001:2008 standard, RoHs certification | ||
Advantages
(1) Experience & Equipment
i: For over 15 years, we have maintained a strict quality control process. we want each of our new and existing customers to have a positive and worry-free experience.
ii: the raw materials POM are imported from Japan
iii: automation equipment: KT-100 injection molding machine, P25 molding machine
iv: 100% Inspection: micrometer, dial indicator, caliper, measuring projector
If you have any questions ,please feel free to contact us!
