| 出力トルク: | 2800Nm | 入力速度: | 540r. p. m | 原産地: | 中国(本土) | 銘柄: | jctt | 伝動装置の整理: | 拍車 | モデル番号: | XHG04 | 出力速度: | 比1.4: 1〜2.46: 1 | 評価される力: | 入力125hp | 使用中: | 攪拌機動力伝達機械 | シャフト: | 1 "3/8 z6 | 重量: | 65キログラム |
包装
| 包装: | カートンごとの2個木製ケース、 輸出に適してい |

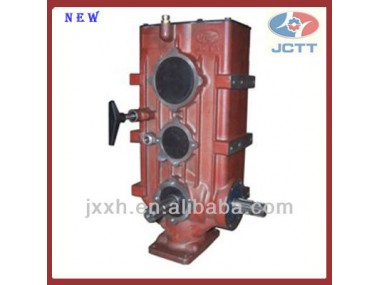

Agricultural Gearbox Assy for Hydroseeding Machine
Details:
| Code | Input power (hp) | Input speed (r.p.m) | Gear ratio (i) | Output Torque (Nm) | Weight (kg) |
| XHG02 | 125 | 1000 | 1.4:1~2.46:1 | ≤2800 | 62 |
| XHG03 | 80 | 540 | 32.3:1 | ≤2800 | 235 |
| XHGO4 | 125 | 540 | 1.4:1~2.46:1 | ≤2800 | 65 |
Agitator gearbox and hydro_seeding machine gearbox assembly are of various new type gearboxes, self-developed by our company in order to meet the requirement of stockbreeding machine marke. With its characteristics of compact design structure, stable transmission, reliable performance, they are widly used in stock raising and hydro_seeding machine. These series gearboxes have obtained national patent.
