| 原産地: | 中国(本土) | 銘柄: | quanjia | モデル番号: | 81527330.1230 | 力: | ソレノイド | ポートサイズ: | G1/2,npt1/2 | 標準的なか標準外: | 標準 | 圧力: | 中型圧力 | 材料: | ステンレス | 構造: | ダイヤフラム | 媒体の温度: | 中型の温度 | 媒体: | 水 | モーションpattem: | ガイドタイプ | 適用流体: | 中性ガスや液体 |
包装
| 包装: | カートン |

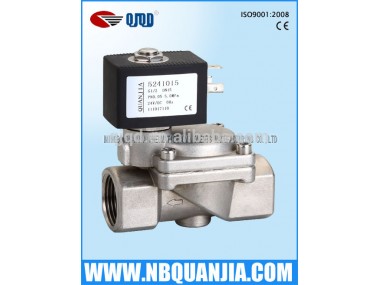

2-2 way G1/2 16bar SS304 solenoid valve
| Pilot diaphragm Solenoid valve | |
| Motion Pattem: | Guide Type |
| Control Type: | Nomally Closde |
| Joint Pipe Bore: | G1/2 or NPT1/2 |
| Aperture of Flow Rate: | DN40 |
| Warking-pressure: | 0.25~16bar |
| Applicable Fluid: | Neutral gas or liquid,steam |
| Fluid Viscosity: | ≤21mm2/s |
| Fluid Temperature: | -10~+80°C |
| Ambient Temperature: | -10~+50°C |
| Body material: | SS304 |
| Seals material: | NBR FPM EPDM |
| Standard Voltage: | AC:220V(50/60Hz) AC110V DC2V |
| Protection Class: | IP65 |
Our company is a professional manufacturer of fluid control components such as angle seat valve, the electromagnetic valve, pneumatic angle seat valve, the air control valve, ex-proof solenoid coil, integrated design, development and manufacture.
Our company owns dozens sets of fine process equipment with international advanced level, and is equipped with high-precision testing instrument and equipment. We follow the JB/T 7352-2010, JB/T 6378-2008,ISO9001:2000 quality management system standard, adopt advanced manufacture techniques and strict process control procedure to guarantee the quality. At the same time, we can also design and produce fluid control components such as the electromagnetic valve, pneumatic angle seat valve, the air control valve, ex-proof solenoid coil with special specs according to the requirement of customers.
Products are widely used in the emu, automobile, shipbuilding, machinery, chemicals, mining equipment, pharmaceutical and medical equipment industries, the company has the self-management import and export rights, product best-selling domestic and exported to Europe, America, Middle East, southeast Asia, Australia, New Zealand and other countries and regions.
"Go all out to create the best products" is the unchanged pursuit and tenet for us. Our company will always follow this principle as before to produce the best products and serve customers.
