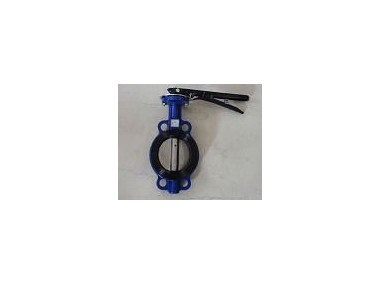

    鋼製ハンドルd71x-16手動バタフライバルブ-バルブ
    商品番号: 10537180
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: tfブランド モデル番号: tf D71X-16
    力: 手動 ポートサイズ: DN40-DN200 標準的なか標準外: 標準
    圧力: pn16 材料: キャスティング 構造:
    媒体の温度: 中型の温度 媒体: サイズ: DN50-DN300
    公称圧力: pn16 デザイン標準: ギガバイト ボディ材質:
    電源: マニュアルオペ サンプル可用性: 利用可能 標準: optioal

    包装

    包装: あたりcustmerの要件に



     D71X-16 steel handle manual butterfly valve



     Feature


    1. Size: DN40-DN200  wafer type, lug type and double flanged type




    2. Materials: Body: Cast iron, carbon steel, 304S. S, 316S. S and aluminum bronze.



    3. Working Pressure: PN16


    1) It is reliable in sealing. The more it closes, the tighter the sealing. It is suitable for medium pressure pipes with t he nominal pressure between 16MPA
    2) At the time of opening, the disc can separate itself from the seat promptly, thus the friction torque is low
    3) The adjustment can be done for compensation if the valve seat is worn, thus prolonging the service life
    4) The sealing face of the valve seat is made of EPDM, which is suitable for a temperature between -30º C and 230º
