| プロダクト: | 金型/金型 | プロダクト材料: | プラスチック | 原産地: | 中国(本土) | 銘柄: | jieken | モデル番号: | Jieken890 | モードの形成: | プラスチック注入型 | 金型: | 赤 | 成形: | 赤 | プラスチック金型: | 赤 | 射出成形金型: | 赤 | プラスチック射出成形金型: | 赤 | 金型プラスチック: | 赤 | 成形プラスチック: | 赤 | 型射出: | 赤 | 成形インジェクション: | 赤 | 成形プラスチック射出: | 赤 |
包装
| 包装: | 木製ケースのための金型/金型 |
Product Description

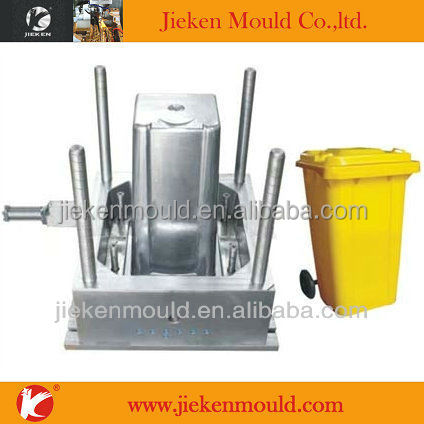

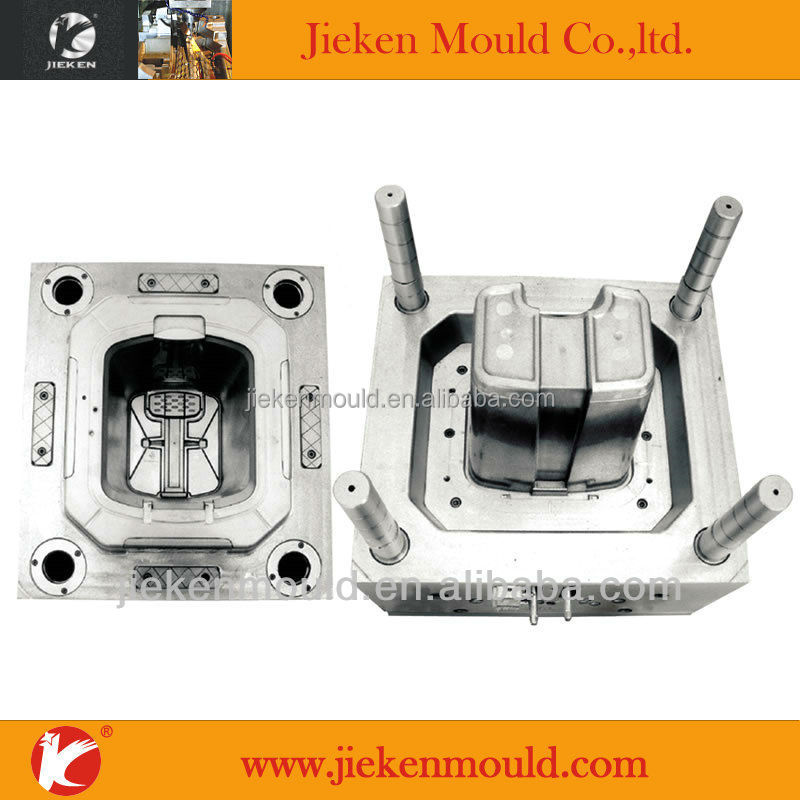

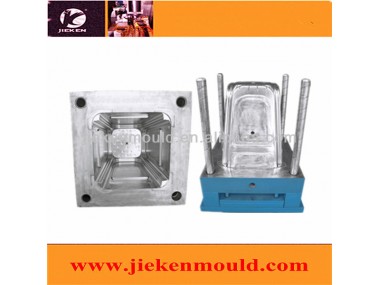

Name | Plastic Injection Mold |
Core&Cavity | P20/718HH/NAK80/2738/2344/2316/S136 |
Mould base | LKM/DME/HASCO |
No.of Cavity | SINGLE/MULTI |
Runner System | Cold/Hot (YUDO/HASCO/MASTER/SYNVENTIRE |
Designing Software | CAD/UG/IGS/STP/SOLID WORKS/PARASOLID |
Equipment | 3-AXIS CNC/5-AXIS CNC/EDM/WEDM/DIE SPOTTING |
Steel Grade | Characteristics | Applications |
S136 | High purity, high polishability to mirror finish, with good corrosion resistance and low distortion after heat treatment. | High quality and mould inserts with mirror surface finish, best suitable for plastic moulding of PVC, PP, PC, machine parts for food processing machinery. |
NAK 80 | High hardness, good polishability, excellent photo etchingability, good EDM machining and weldability. | Moulds require high wear resistance and excellent surface finishing. |
718H | High purity and polishability | High quality mould inserts, best suitable for moulding of PS, PE, PP, ABS. |
2316 | High corrosion resistance | High corrosion resistance moulds with good polishability |
P20 | Good polishability | Suitable for moulds require good surface polishing |
2312 | Excellent machinability | Plastic mould for general use and core parts |
