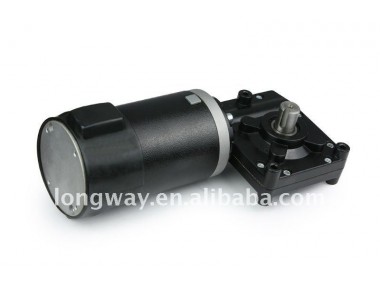

| 原産地: | 中国(本土) | 銘柄: | ロングウェイモーター | モデル番号: | d76 | 形: | 虫 | 標準的なか標準外: | 標準 | 方向: | cw/ccw | 材料: | 金属 |
包装
| 包装: | 標準的な輸出カートン |
Products Type | Voltage | Power | No Load | Load | Gear ratio | Motor length | ||||
Speed | Current | Speed | Current | Torque | mm | |||||
V | W | RPM | A | RPM | A | N.M | ||||
D76L-2445-150 | 24 | 45 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 77 | |
D76L-2445-180 | 24 | 45 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 77 | |
D76L-2445-210 | 24 | 45 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 77 | |
D76L-2465-150 | 24 | 65 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 85 | |
D76L-2465-180 | 24 | 65 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 85 | |
D76L-2465-210 | 24 | 65 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 85 | |
D76L-2495-150 | 24 | 95 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 97 | |
D76L-2495-180 | 24 | 95 | 180±5 | ≤1.2 | 150±5 | ≤4.5 | ≥4.5 | 1:20 | 97 | |
D76L-2495-210 | 24 | 95 | 210±5 | ≤1.5 | 180±5 | ≤6.5 | ≥6.0 | 1:20 | 97 | |
Remarks | Above are our model parameter for the wire feed for your reference, and we can design and make following to your voltage, power, speed, torque, install dimension and shaft outspeed dimension etc. | |||||||||
welcome to buy worm gear motor.
