| 原産地: | 中国(本土) | 認証: | CCC, CE, tuv | 銘柄: | シンプルな | AC電圧: | 208-230/240ボルト | モデル番号: | Xp92m/xp92s | 特徴を保護しなさい: | Drip-proof | 頻度: | 50hz | 材料: | 金属 | 色: | カスタマイズされた | 大きさ( 直径): | 35mm、 45ミリメートル、 59ミリメートル、 92ミリメートル | 証明書: | ce、 ccc、 tuv | oem: | はい |
包装
| 包装: | カートンを包装、 パレット |
# Factory Direct Sale with best price! #

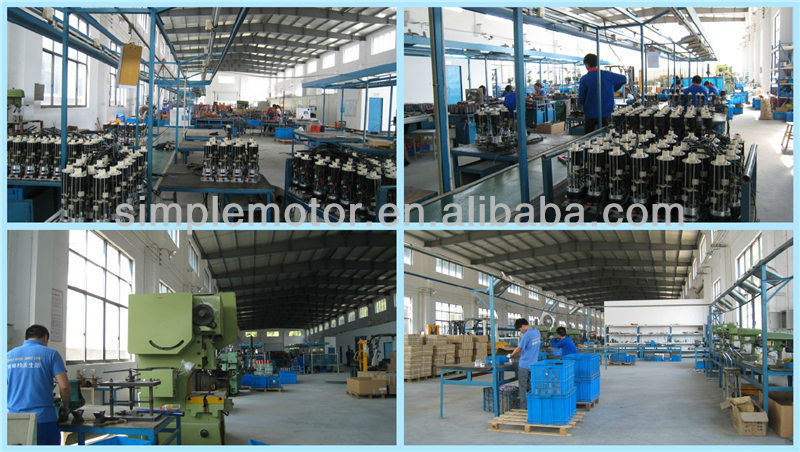

We are one of most competive manufacturers in China on tubular motor, Side motor, Central motor, Sliding motor and relative accessories for many years.
The perfect performance and stable quality is the target we are pursuing all the time.
Please contact with us for more details.
Products features:
1. Stable performance, good quality;
2. Factory price, preferential rate for big quantity purchase;
3. Noiseless design;
4. Easy for installation;
5. 5 years warranty.
Technical data:

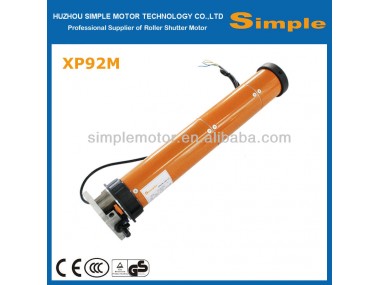

XP92 series | Rated torque | Rated voltage | Rated frequency | Rated power input | Tube diameter | Rated current | Running time | Rated speed |
| (N.m) | (V) | (Hz) | (W) | (mm) | (A) | (min) | (rpm) | |
| 140N.m | 230V | 50Hz | 580W | 92mm | 2.60A | S2 4min | 12rpm | |
| 180N.m | 230V | 50Hz | 626W | 92mm | 2.80A | S2 4min | 12rpm | |
| 230N.m | 230V | 50Hz | 830W | 92mm | 3.80A | S2 4min | 12rpm | |
| 300N.m | 230V | 50Hz | 920W | 92mm | 4.20A | S2 4min | 9rpm | |
| 330N.m | 230V | 50Hz | 980W | 92mm | 4.50A | S2 4min | 9rpm |

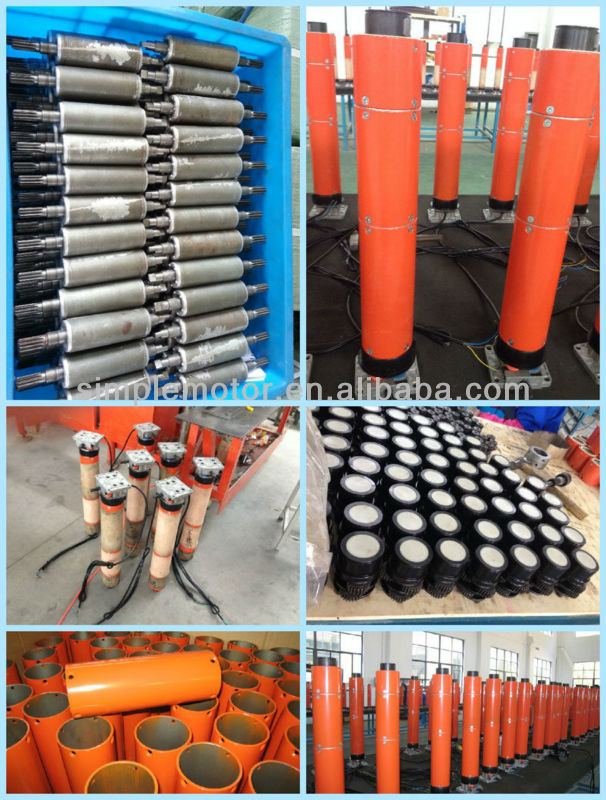

Products details:
