| 原産地: | 中国(本土) | 銘柄: | kinggiant | モデル番号: | CPM130、CPM146、CPM158、CPM180、CPM200 | 標準的なか標準外: | 標準 | ポンプ部品及びAccessries: | インペラー | 色: | ブルーウォーターポンプ | 使用法: | 水 | インペラ: | 真鍮インペラ | 構造: | シングルステージポンプ | 理論: | 遠心ポンプ | 圧力: | 低圧 | 使用法: | 水 | 力: | 電気 |
包装
| 包装: | 各ポンプでワンカートン。 |
Water Pump

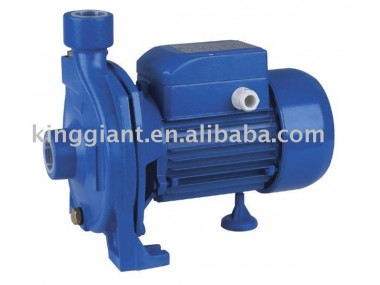

CPM Series
CENTRIFUGAL PUMP
CONSTRUCTION:
Pump Peripheral
Pump Body:Cast Iron with brass insert

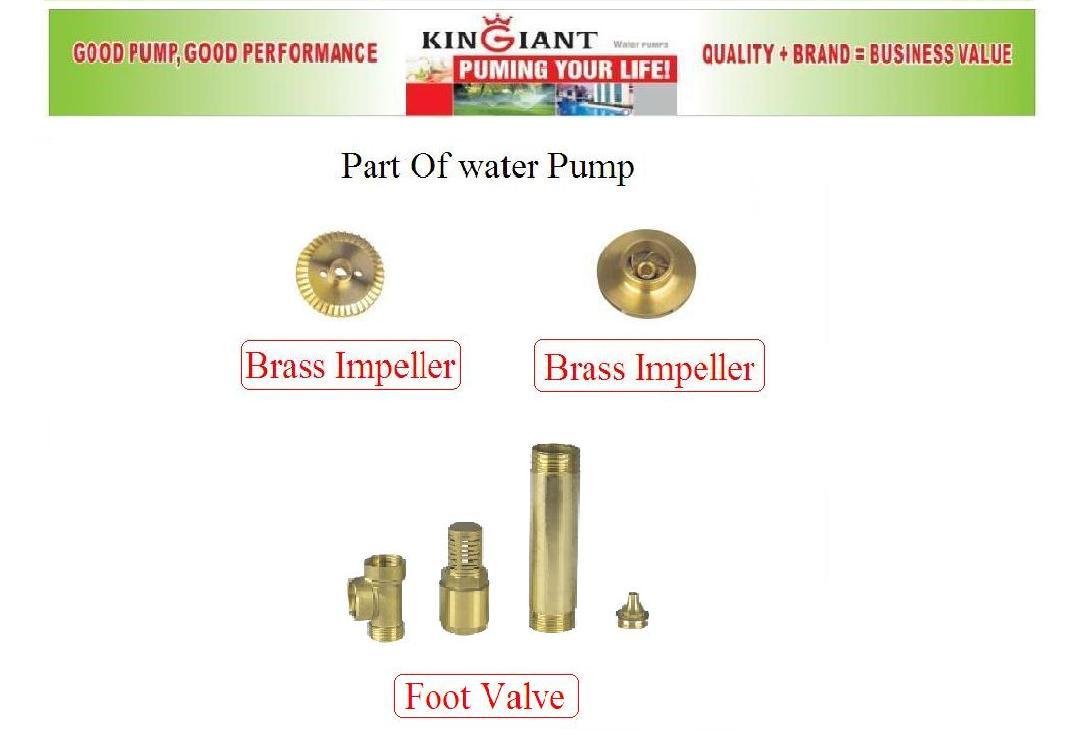

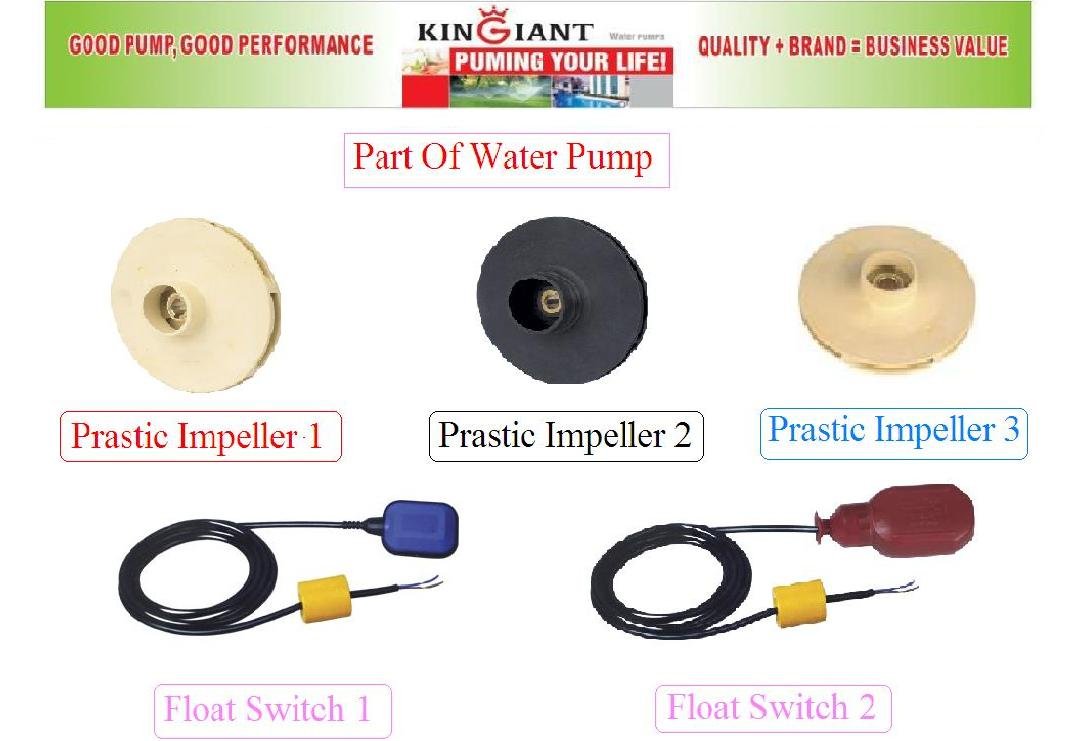

Impeller:Brass ;Stainless steel; P.P.O.Plastic
mechanical seal:carbon;ceramic;stainless steel
MOTOR SINGLE PHASE HEAVY DUTY ConTINOUS WORK
motor housing : aluminium
shaft:carbon steel ; stainless steel
insulation:classB ; class F
protection:IP44;IP54
cooling :external ventilation
CPM series centrifugal pumps are single stage, high efficient electric pumps, consisted of a miniature motor and a single impeller centrifugal pump. They have a good performance in Big Capacity and High Head.
They are widely used in well-pumping, water supplying, decanting , mixing and irrigating for civil, industry and agriculture ,
PERFORMANCE SPECIFICATIONS
Model | Power | Q.max. L/min | H.max. M | Suct.max. M | Speed r.p.m | inlet/Outlet mm | PACKAGE DIMENSIONS&G.W. | |||||
HP | KW | A | B | H | kg |
| ||||||
CPM-130 | 0.56 | 0.40 | 90 | 22 | 9 | 2850 | 25×25 | 310 | 170 | 230 | 8.9 |
|
CPM-146 | 0.75 | 0.55 | 100 | 28 | 25×25 | 340 | 210 | 260 | 12.2 |
| ||
CPM-158 | 1 | 0.75 | 110 | 32 | 25×25 | 340 | 210 | 260 | 13.8 |
| ||
CPM-180 | 1.5 | 1.10 | 180 | 38 | 40×40 | 400 | 220 | 280 | 21 |
| ||
CPM-200 | 2 | 1.5 | 500 | 20 | 50×50 | 420 | 220 | 270 | 23 |
| ||
