| 原産地: | 中国(本土) | 銘柄: | longweiブランド | モデル番号: | lwxzシリーズ | 標準的なか標準外: | 標準 | ポンプ部品及びAccessries: | ポンプ包装 | 素材: | 高クロム | 接続: | derictカップリング | 電源: | 電気 | 構造: | 単段ポンプ | 圧力: | 低圧 | 使用法: | 水 | 理論: | 遠心ポンプ | アプリケーション: | 水、固体、泥 |
包装
| 包装: | 標準輸出木製ケース |
Features:

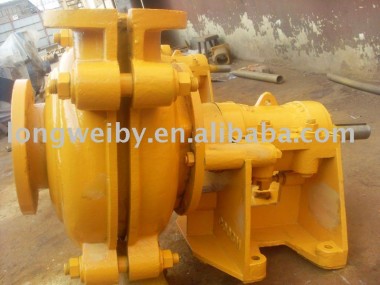

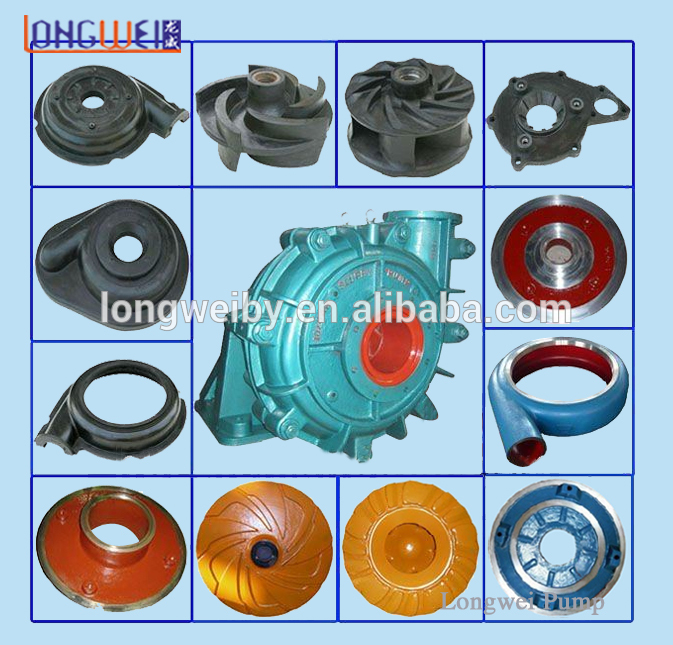

Grease lubrication, single-stage, single-suction, cantilevered, horizontal, wear resistant layer and bearing layer can be separated, double casing structure. High efficiency, wear resistant, stable performance, interchangeability of parts. Series LWAH the lining and impeller can be made of wear metal or rubber. The discharge outlet of the centrifugal slurry pump can be adjusted with rotation interval of 45 degree, the pumps can be operated in series and driven with belt. The shaft seal can adopt expeller type shaft sealing, gland packing assembly and mechanical sealing.
Application:
LWA slurry pump is used for delivering slurry with strong abrasion and high concentration for metallurgy, mines, coal and power plant, etc.
Specification:
Discharge Diameter:25~450mm
Flow Capacity:6.5~5000m3/h
Head:5~55m
Material:A05 , A31 , A33 , A49 , etc
