    高耐熱性ダブルジャケットガスケット/asmeb16.20標準-ガスケット
    商品番号: 10499682
    仕入れる商品へのお問い合わせについて、
    お電話の場合:スタッフに商品番号をお伝えください。
    商品の詳細

    原産地: 中国(本土) 銘柄: 東風 モデル番号: 1550
    形: 平らなガスケット 標準的なか標準外: 標準 材料: 金属

    包装

    包装: 木製ケース

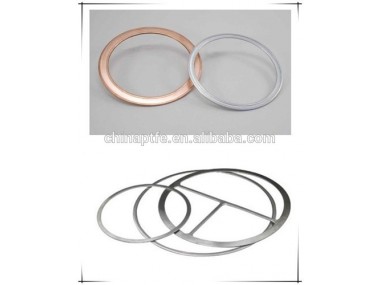

    Double Jacket Gasket is made from graphite, ceramic, non asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion.



    Double Jacket Gasket is particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels.



    By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal jacket gasket can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should e considered.



    Products Features

    metal materials

    Hardness

    (HB)

    Temperature

    (°C)

    Density

    g/cm³

    Material for the insert

    Thickness

    (mm)

    Size

    (mm)

    CS/Soft Iron

    90~120

    -60~500

    7.85

    Flexible Graphite, Ceramic Fiber, Mica etc.

    2~8

    ≤φ5000

    SS304, SS304L

    130~180

    -250~550

    7.90

    SS316, SS316L

    130~180

    -250~550

    7.90

    Copper

    50~80

    -250~400

    8.90

    Aluminium

    20~30

    -250~300

    2.73
