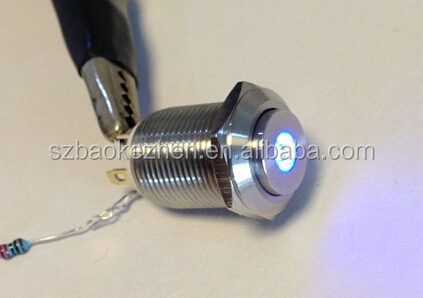

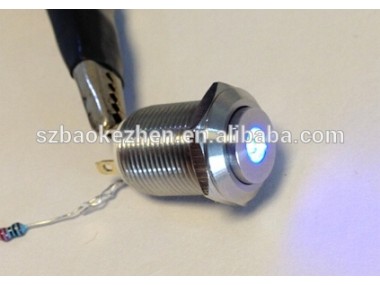

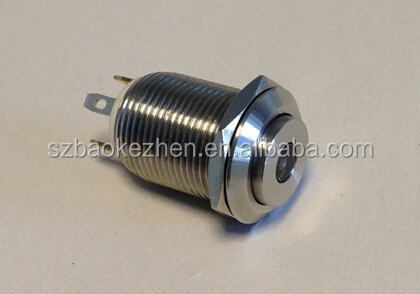

| 原産地: | 中国(本土) | 銘柄: | baokezhen | モデル番号: | L12-1GD-4Cステンレス鋼 | 保護レベル: | ip67、 IK08 | 最高。 電圧: | 3ボルト | 最高。 現在: | 2a |
包装
| 包装: | 70 ピース/箱 |
| Mounting hole: Φ12mm diameter |
| Operation type: Momentary |
| Contact Configuration:1NO |
| Front Shape: High Round |
| Terminal Type: 4 Pin terminals |
| Max. Switch Rating: 2A/3V |
| Contact Resistance: ≤50mΩ |
| Insulation Resistance: ≥1000mΩ |
| Dielectric Intensity: 2000VAC |
| Operating Temp: -20°c~+55°c |
| Mechanical life: 500,000 cycles |
| Electrical Life: 50, 000cycles |
| Panel Thichness: 1~6mm |
| Torque: 5~14Nm |
| Operation Pressure: about 5N |
| Operation Distance: about 2.5mm |
| IP Degree: IP67,IK08 |
| Contact Material: Silver Alloy |
| Crust Material: Stainless Steel |
| Button Material: Stainless Steel |
| Body Material: Stainless Steel |
| base Material: PA66 |
| LED spec.: Dot Illuminated(LED) |
| LED rated Voltage: 3V |
| LED Color: Red,Green,Yellow,Blue,White,Oragne,Purple |
| LED Life: 40000 hours |
We can especially make for you according to your requirement,including laser inscription,change installation dimensions,change appearance colors,change material and so on.If you have any question,pls feel free to tell me.We shall spare no efforts in endeavouring to be of service to you.Pls contact us for more information.
