| 原産地: | 中国(本土) | 適用: | 試験温度 | 銘柄: | reou | モデル番号: | 熱電対- k | タイプ: | 絶縁または裸 | 絶縁材: | pvc、xlpe、 テフロン、 シリコーンゴム、 など | コンダクター材料: | ニッケルクロム& nisi (nial) | コンダクターのタイプ: | 単線または | 熱電対タイプ: | kタイプ | 熱電対直径: | 18awg、 またはあなたが必要 | thermocoupeポール: | kn、 kp | 熱電対絶縁: | pvc、 xlpe、 teflone、 グラスファイバー、など。 | kタイプ熱電対線導体: | 単線または | kタイプ熱電対線ジャケット色: | 標準またはあなたが必要 | 熱電対線長さ: | 2550メートル、 5100メートル、 など、 あなたが必要 |

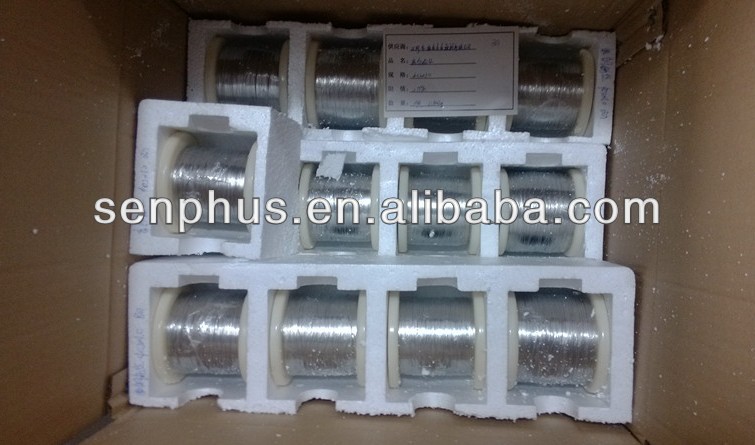

包装
| 包装: | カートン |

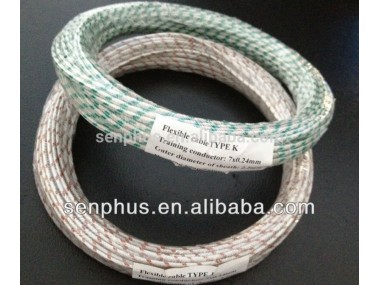

K thermocouple wire:
Jiangyin ChengXin Alloy Material Co.,Ltd offers a wide variety of Special Thermocouple wire. These wires are available in a multitude of insulating jackets as well as protective metal overbraids.
Insulation could be PVC, XLPE, Teflon, Silicone rubber, etc
Conductor wire could be solid or stranded.
The length could be customized. Besides, the negative and positive could be offered in pair or separated.
All depends on you.
Type K(NiCr-NiSi) thermocouple finds ther widest use in all base metal thermocouple above 500oC. Positive leg NiCr(KP) : Ni: about 90% Cr: about 10%
Negative leg NiSi(KN): Ni: about 97% Si: about 3%
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It hs high EMF against Platinum 67, excelletn temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing orinert atmospheres, but cannot be used directly in the following cases:
1, alternatively oxidizin and reducing atmosphere
2, atmosphere with sulphur gases
3, long time in vacuum
4, low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere
Special Limits of Error for Thermocouple Accuracy* |
| |||||||||||||||||||||
| ||||||||||||||||||||||
