原産地: | 中国(本土) | 銘柄: | jxl | モデル番号: | bs20 | タイプ: | 編組スリーブ | 材料: | ペット | 防火: | ul94 |
包装
包装: | 100メートル/ロール、300メートル/ロール... |
PRODUCTS FEATURES

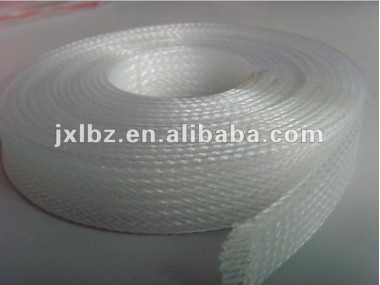

braided cable sleeving is ideal for a limitless number of electronic, automotive, marine and industrial wire management and bundling applications. Examples include engine compartment dress up, home theater wire management, customizing computer case wiring, office wire management, automotive harnesses, scuba hose protection, and many more. Threads of different colors and textures could be woven into different patterns. Each of our products is tailored to the client's business and needs.
Economical & easy to install
High tensile strength
Cut & abrasion resistant
Expands up to 150%
Halogen free
resists gasoline, chemicals & cleaning solvents
SGS, UL, RoHS approved
available up to 3" in diameter
-103°F to 257°F (-75°C to 125°C) temperature range
melt temperature 446°F (230°C)
Colors: black, grey, white, red, green, blue, yellow, purple, pink, orange etc.
Specifications:
Part Number | SIZE | Material | Expandable Range | Temperature Range | |||
mm | inch | mm | inch | ||||
JXL-PET03 | 3MM | 1/8" | Polyester(PET) | 2.4--6.4 | 3/32"--1/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET06 | 6MM | 1/4" | Polyester(PET) | 3.2--11.1 | 1/8"--7/16" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET08 | 8MM | 5/16" | Polyester(PET) | 6.4--12.7 | 1/4"--1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET10 | 10MM | 3/8" | Polyester(PET) | 4.8--15.9 | 3/16"--5/8" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET12 | 12MM | 1/2" | Polyester(PET) | 6.4--19.1 | 1/4"--3/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET16 | 16MM | 5/8" | Polyester(PET) | 9.5--25.4 | 3/8"--1" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET19 | 19MM | 3/4" | Polyester(PET) | 12.7--31.8 | 1/2"--1-1/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET25 | 25MM | 1" | Polyester(PET) | 15.9--38.1 | 5/8"--1-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET32 | 32MM | 1 -1/4" | Polyester(PET) | 19.1--44.5 | 3/4"--1-3/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET38 | 38MM | 1 -1/2" | Polyester(PET) | 25.4--63.5 | 1"--2-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET45 | 45MM | 1 -3/4" | Polyester(PET) | 31.8--69.9 | 1-1/4"--2-3/4" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET51 | 51MM | 2" | Polyester(PET) | 38.1--88.9 | 1-1/2"--3-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET64 | 64MM | 2 -1/2" | Polyester(PET) | 44.5--114.3 | 1-3/4"--4-1/2" | -103°F-- 257°F | -75°C-- 125°C |
JXL -PET76 | 76MM | 3" | Polyester(PET) | 63.5--120.7 | 2-1/2"--4-3/4" | -103°F-- 257°F | -75°C-- 125°C |
