| 原産地: | 中国(本土) | 銘柄: | QIN/RUBY/OEM | モデル番号: | 熱収縮の管 | タイプ: | 縮みやすい熱- | 材料: | PVC | 色: | 顧客の要求として |
包装
| 包装: | スプールか切口によって要求あり次第パッキング |

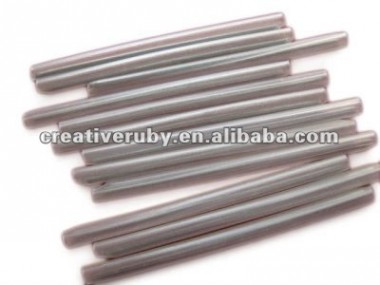

Waterproof Single Splice Protector fiber optic splice sleeves RoHS passed 40mm
Features
·Good moisture and environmental performance
·Transparent casing can be connected better before contraction
·Easily operating to the optical fiber
·Waterproof, RoHS compliant
Specifications
| Hot-melt tube(D) | Steel(D) |
| ||||
Model | Constriction Diameter(mm) | Length (mm) | Inside Diameter (mm) | Length (mm) | Outside Diameter (mm) | Length (mm) | Packgae(pcs) |
60 | 3.3±0.1 | 60 | 1.4 | 60 | 1.5 | 55 | 100 |
60B | 2.9±0.1 | 60 | 1.3 | 60 | 1.5 | 56 | 100 |
45 | 3.1±0.1 | 45 | 1.4 | 45 | 1.5 | 40 | 100 |
40 | 3.1±0.1 | 40 | 1.4 | 40 | 1.5 | 36 | 100 |
23 | 3.1±0.1 | 23 | 1.4 | 23 | 1.5 | 18 | 100 |
61M | 2.7±0.1 | 61 | 1.3 | 61 | 1.2 | 55 | 100 |
60M | 2.7±0.1 | 60 | 1.3 | 60 | 1.2 | 56 | 100 |
45M | 2.7±0.1 | 45 | 1.3 | 45 | 1.2 | 40 | 100 |
40M | 2.7±0.1 | 40 | 1.3 | 23 | 1.2 | 36 | 100 |
30M | 2.7±0.1 | 30 | 1.3 | 23 | 1.2 | 26 | 100 |
25M | 2.7±0.1 | 25 | 1.3 | 23 | 1.2 | 21 | 100 |
40T-S | 1.5±0.1 | 40 | 0.5 | 40 | 0.7 | 40 | 100 |
40TS | 1.9±0.1 | 40 | 1.2 | 40 | 0.7 | 40 | 100 |
60T | 2.0±0.1 | 60 | 0.5 | 60 | 1.0 | 56 | 100 |
40T | 2.0±0.1 | 40 | 0.5 | 40 | 1.0 | 36 | 100 |
60A | 2.5±0.1 | 60 | 1.3 | 60 | 1.0 | 56 | 100 |
40A | 2.5±0.1 | 40 | 1.3 | 40 | 1.0 | 36 | 100 |
40S | 1.3±0.1 | 40 | 0.5 | 40 | 0.5 | 40 | 100 |
Applications
·Use the enhanced wire, hot-melt tube and cross-linked polyolefin composition
·Reconstruct the fiber coating
·Junction to provide a good mechanical strength
·Ensure good optical transmission properties
