| 原産地: | 中国(本土) | 銘柄: | yuanda | モデル番号: | sr | タイプ: | 耐熱 | 材料: | シリコーンゴム | 色: | オプション |
包装
| 包装: | カートンか巻き枠またはパレットまたは皿 |

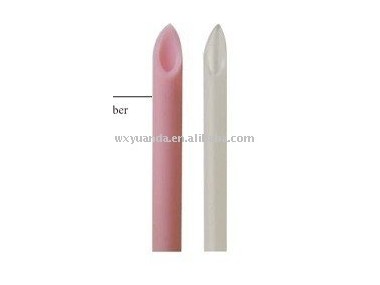

SR silicone rubber sleeving
Nominal voltage: 600V
Temperature range: -60deg.C -+200deg.C
Testing voltage: 2500V, 4000V, 7000V
Colours: optional
Test by UL VW-1
USE: internal wire of appliance , home appliance, industrial mechine or electronic equipment, which is exposed to high temperature
| Size (mm) | 2500V | 4000V | 7000V | Length/coil m | |||
| Average thickness (mm) | Tolerance of inner diameter(mm) | Average thickness(mm) | Tolerance of inner diameter (mm) | Average thickness (mm) | Tolerance of inner diameter (mm) | ||
| 1.0 | 0.50 | ±0.10 | 1.00 | ±0.10 | 1.8 | ±0.10 | to be specified by customer |
| 2.0 | 0.50 | ±0.10 | 1.00 | ±0.10 | 1.8 | ±0.10 | |
2.5 | 0.50 | ±0.10 | 1.00 | ±0.10 | 1.8 | ±0.10 | |
| 3.0 | 0.50 | +0.15 -0.10 | 1.00 | +0.15 -0.10 | 1.8 | +0.20 -0.10 | |
| 4.0 | 0.50 | +0.15 -0.10 | 1.00 | +0.15 -0.10 | 1.8 | +0.20 -0.10 | |
| 5.0 | 0.50 | +0.20 -0.10 | 1.00 | +0.20 -0.10 | 1.8 | +0.20 -0.10 | |
| 6.0 | 0.55 | +0.20 -0.10 | 1.20 | +0.20 -0.15 | 2.00 | +0.30 -0.15 | |
| MAX20.0 | 2.0 | +0.30 -0.20 | 3.00 | +0.30 -0.20 | 4.00 | +0.30 -0.20 | |
