原産地: | 中国(本土) | 銘柄: | 天一 | モデル番号: | rsbjシリーズ熱収縮閉鎖 | タイプ: | 縮みやすい熱- | 材料: | PVC | ケーブルpairs: | 10-2400 pairsテレコムケーブル | ジョイントタイプ: | ストレートジョイント、支店関節 | クラス: | 繊維強化 | 色: | 黒 | oem: | 許容できる | サイズ: | すべてのサイズに適し。 |
包装
包装: | 15-20セット/カートン用一般熱収縮閉鎖/または要求として |

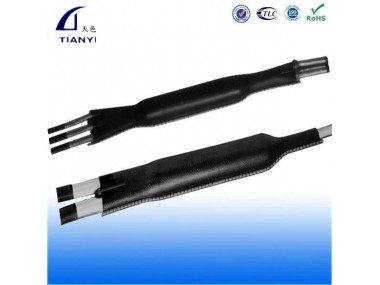

RSBJ Series Reinforced Anti Corruption Heat Shrink closures for Telecom Cable Joint
Product Description
Application: RSBJ Series Heat Shrink Closures are Widely used in pressurized telephone network for the protection of cable joints.
Features of RSBJ Series Heat Shrink Closures :
- (1). Wraparound; Fiber reinforced; Suitable for aerial, buried and ducted applications; applicable temperature range: -40~80°C.
- (2). Glass composite structure gives excellent split resistance and good performance under high mechanical pressure.
(3). Inner layer is strong hot-melt adhesive to ensure high sticky capacity. Closures have good tightness under high & low temperature.
(4). The kit contains a range of fully interchangeable air fittings, which can be incorporated in the closure.
(5). Two white lines under channel and thermo-sensitive paint on the sleeve can assure proper installation.

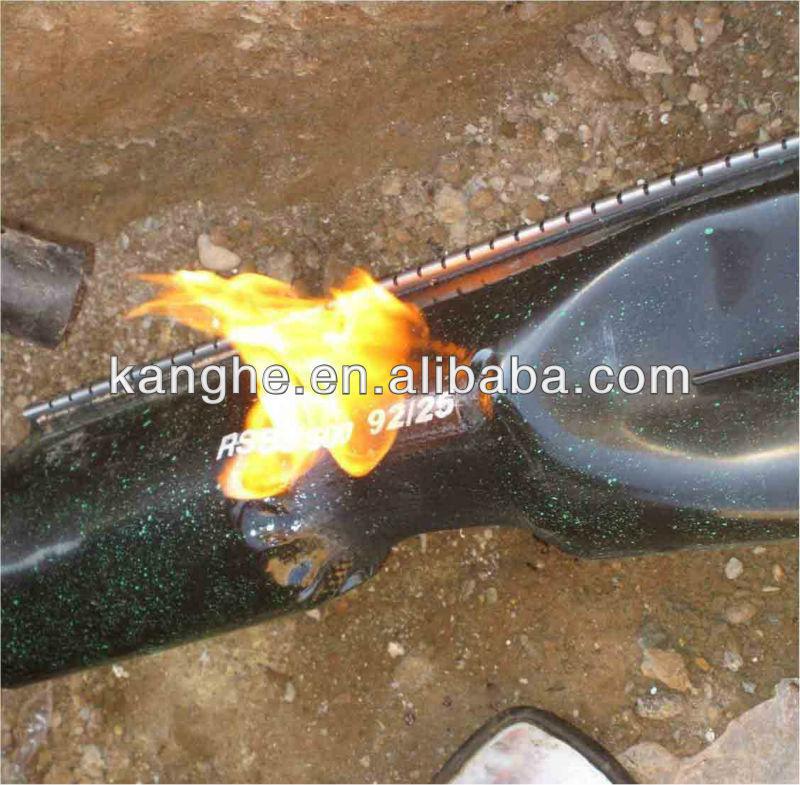

(6). Installation is easy and can apply to different sizes cables.
Description of RSBJ Series Heat Shrink Closures

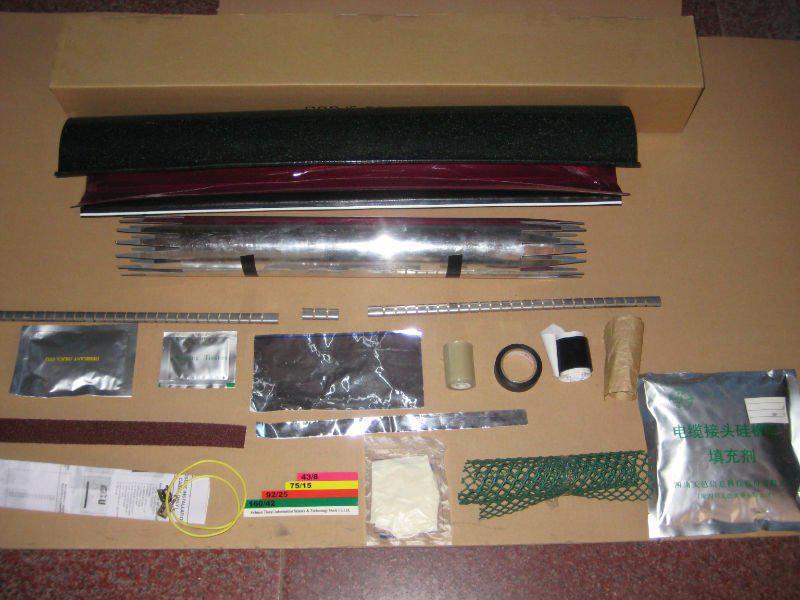

The RSBJ Series Heat Shrink Closures for Cable Joint are available in an extended size range having joint capacity up to 2400 pairs. The kit includes a variable liner, which insulates, shapes and compacts the joint bundle.
The RSBJ Series Heat Shrink Closures range of joint closures uses the reinforced composite heat-shrinkable sleeve and a metal canister having a joint capacity up to 3600 pair.
Both of them are suitable for non-pressurized cables, aerial, buried or ducted, non-filled or jelly filled, with lead or polyethylene sheaths.
Advantages
Advantage of RSBJ Series Heat Shrink Closures
Easy to install.
- Unlimited Shelf life.
- Excellent environmental & mechanical protection.
- Can be used for direct buried, ducted, underground cables , aerial cables, jelly filled or dry cables.
- Upto 3 cables on each side can be branched by using branch off clips.
- Re-entry and reclosing of joints is possible.
Buying Guides
Selection Chart For Ordering RSBJ Series Heat Shrink Closures
Description | Splice bundle max. Diameter | Single Cable Min. Diameter | Sheath Opening Length | Sleeve Length | Applicable cable Pairs | |
W.D 0.4 | W.D 0.5 | |||||
RSBJ 43/ 8-150 | 43 | 8 | 150 | 350 | 10-100 | |
RSBJ 43/ 8-300 | 43 | 8 | 300 | 500 | ||
RSBJ 55/ 12-150 | 55 | 12 | 150 | 360 | 30-50 | |
RSBJ 55/ 12-300 | 55 | 12 | 300 | 510 | ||
RSBJ 75/ 15-240 | 75 | 15 | 240 | 480 | 100-200
| |
RSBJ 75/ 15-300 | 75 | 15 | 300 | 540 | ||
RSBJ 75/ 15-400 | 75 | 15 | 400 | 640 | ||
RSBJ 92/25-350 | 92 | 25 | 350 | 580 | 400-600
| |
RSBJ 92/25-500 | 92 | 25 | 500 | 770 | ||
RSBJ122/30-500 | 122 | 30 | 500 | 810 | 600-1200 | |
RSBJ160/55-500 | 160 | 55 | 500 | 600 | 1200-2000 | |
RSBJ200/65-500 | 200 | 65 | 500 | 800 | 2400 |
Finished Products
