| 原産地: | 中国(本土) | 銘柄: | 9v/jiuwei電気 | モデル番号: | Vfsm- 12月4日 | 材料: | PE | エンドキャップのサイズ: | 12mm-200mm | バルブ付きエンドキャップ: | 利用可能な | エンドキャップの色の: | 黒 | 環境基準エンドキャップ: | rohs指令 | 収縮温度エンドキャップ: | 120°c | エンドキャップの材質: | pe | 用法エンドキャップ: | ケーブルシーリング、 防水 |
包装
| 包装: | 顧客の要求へのカートンかaccoroding。 |

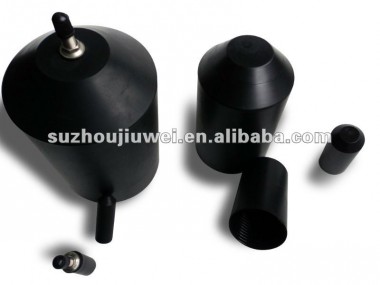

Heat Shrinkable Cable End Caps
Our products include Cold power cable accessories; Heat shrinkable power cable accessories; Low voltage heat shrinkable casing; Highpressure heat shrinkable casing; The bus protection box; High and low voltage heat shrinkable belt; PVC contraction casing; PVC contractive casing; J series since the adhesive tape; Electrical tape; Continuous length mother row protective casing; Steel pipe anticorrosion with heat shrinkable materials; Prefabricated branch cable; Irradiation processing; Other related products; Yellow green heat shrinkable tube; Double-wall heat shrinkable tube; Environmental protection heat shrinkable tube.
1.lSpiral adhesive coating insider of VFSM ;
2.Stealing ,waterproof ,UV fading
Technical data: | ||
Property | Test Method | Standard |
Operating temperature | IEC 216 | -55°C~110°C |
Tensile Strength | ASTMD 638 | >14MPa |
Ultimate elongation | ASTMD 638 | >400% |
Heat aging Ultimate elongation | 150°C/168hrs | >300% |
Density | ASTMD 792 | 1.05 |
Breakdown strength | IEC 243 | >15KV/mm |
Volume resistance | IEC 93 | >1014Ω.cm |
Specification unit(mm) | ||||||
Order Ref. Number | As supplied | After fully recovered Length | Cable diameter | |||
Diam (min) | A(±10%) | Diam (max) | Length (±10%) | Width (±5%) | ||
VFSM-12/4 | 12 | 15 | 4 | 40 | 2.6 | 4-10 |
VFSM-14/5 | 14 | 18 | 5 | 45 | 2.2 | 5-12 |
VFSM-20/6 | 20 | 25 | 6 | 55 | 2.8 | 6-16 |
VFSM-25/8.5 | 25 | 30 | 8.5 | 68 | 2.8 | 10-20 |
VFSM-35/16 | 35 | 35 | 16 | 83 | 3.3 | 17-30 |
VFSM-40/16 | 40 | 35 | 16 | 90 | 3.3 | 18-32 |
VFSM-55/26 | 55 | 50 | 26 | 103 | 3.5 | 28-48 |
VFSM-75/36 | 75 | 55 | 36 | 120 | 4.0 | 45-68 |
VFSM-100/52 | 100 | 70 | 52 | 140 | 4.0 | 55-90 |
VFSM-120/60 | 120 | 70 | 60 | 150 | 4.0 | 65-110 |
VFSM-145/60 | 145 | 70 | 60 | 150 | 4.0 | 70-130 |
VFSM-160/82 | 160 | 70 | 80 | 150 | 4.2 | 90-150 |
VFSM-200/90 | 200 | 90 | 70 | 160 | 4.2 | 100-180 |
Lengthened End Cap | ||||||
VFSM-14/5 | 14 | 30 | 5 | 55 | 2.2 | 5-12 |
VFSM-40/15 | 40 | 40 | 15 | 90 | 3.3 | 18-34 |
VFSM-55/23 | 55 | 70 | 23 | 140 | 3.8 | 25-48 |
VFSM-62/23 | 62 | 70 | 23 | 140 | 3.8 | 25-55 |
VFSM-75/36 | 75 | 70 | 36 | 150 | 4.0 | 40-68 |
VFSM-75/36 | 75 | 70 | 36 | 170 | 4.2 | 45-68 |
VFSM-100/47 | 100 | 65 | 47 | 155 | 4.0 | 50-90 |
about us.
Suzhou Jiuwei Electric Made Co., Ltd. is a company which is skilled in manufacturing cable accessories, electrical equipment and insulation tubes, etc. To face the growing needs of available and potential markets, we are insisting on extracting primary techniques and focusing on advanced technology R&D to provide superior products.
