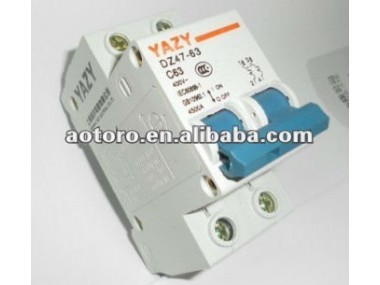

| 原産地: | 中国(本土) | 銘柄: | aotoro | モデル番号: | dz47- | タイプ: | ミニチュアサーキットブレーカ | ポーランド人は番号が付いている: | 2 | モデル: | dz47-63a | 電圧: | 230/400ボルト | 電流: | 1-63A | 極: | 2 | 遮断容量: | 6/4. 5ka |
包装
| 包装: | 包装標準 |
Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.
The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with GB10963,IEC60898 standards.
Main technical data
1.Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;
2.Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;
3.No. of pole:1P,2P,3P,4P
4.Breaking capacity:4.5KA,6KA;
Standard |
| IEC60898 |
Number of poles |
| 1P,2P,3P,4P |
Rated current(In) |
| 6,10,16,20,25,32,40,50,63 |
Rated voltage(Un) |
| AC240/415V |
Rated frequency |
| 50/60Hz |
Tripping curve |
| B,C,D |
Release action characteristics | Time delay | 1.13In>1h Non-trip |
1.45In<1h trip | ||
2.55In 1s~60S trip | ||
Instantaneous(Curve C) | 5In >0.1s Non-trip | |
10In<0.1s trip | ||
Magnetic releases operate |
| B curve:between 3 and 5In |
C curve :between 5 and 10In | ||
D curve: between 10 and 15In | ||
Ratedbreaking capacit(Lcn) |
| 3000A |
Endurance |
| >2500 |
Circumstance temperature |
| -5~+40 |
Electrical life |
| >6000times |
Mechanical life |
| 20000 times |
Tropical ration |
| Treatmen 2(RH95%,at 55°C) |
Protection degree |
| IP20 |
