| 適用: | 高温 | 原産地: | 中国(本土) | 銘柄: | xc | モデル番号: | Xc-g10 | タイプ: | 絶縁材シート | 材料: | ガラス繊維 | 材料: | エポキシ樹脂・ガラスクロス | 耐熱性:: | 180度 | 引張強さ: | 275mpa | 色: | 薄緑、 黒、 黄色、 青のect | 温度指数: | 155℃ | 厚さ: | 0.2-100mm | 密度:: | 1.94g/cm3 |
包装
| 包装: | pretetiveと梱包カートン、 木製の箱やお客様のご要望に応じて |
Factory supply Fr4 Laminated sheet
NEMA Grade: G-10, FR-4 laminated sheet
(IEC Grade: EPGC201, EPGC202)
(DIN7735 Grade: Hgw2372, Hgw2372.1)
Applications:
Widely used as motors and electrical equipment insulation parts, Fpc reinforcement plate, electrical
insulation, carbon film board ,rc hobby parts ,UAV Film frame ,insulating structural parts in electrical &
mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers,
and many others.
Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties Easy to machine
*Tighter thickness tolerance Smooth and clean surface.
*Low water absorption
*Flame resistance

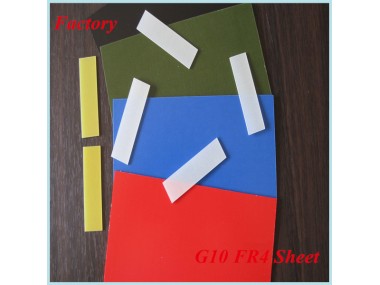

Product picture show :
Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black,blue ect
3) Thickness range: 0.2mm~100mm
4) Sheet size: 400*500mm; 500*500mm; 500*600MM 1000*1200MM
5)Min. Order Quantity: 100 kgs in a lot OR 50 Sheets
Different color available , we provide cnc cutting service Just supply us with an AutoCAD, Solid
Works or DFX file. If you do not have a CAD drawing, Just send us a completely dimensioned
sketch or the real sample,we can make one for you.
