| 適用: | 高温 | 原産地: | 中国(本土) | 銘柄: | liankun | モデル番号: | LK-646 | 引張強さ: | 高 | タイプ: | 絶縁材のスリーブを付けること | 評価される電圧: | 1kv | 材料: | fep |
包装
| 包装: | カートン |

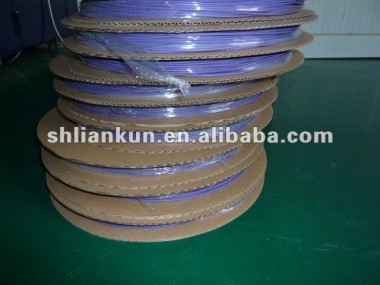

FEP shrink tube
Features
1. Excellent insulation
2. Operating temperature -200oC ~ 200 oC
3. Not burn in the air (Oxygen Index>95vol%)
4. Excellent corrosion resistance
5. Low Friction: Dynamic friction coefficient 0.2-0.3
Application
Widely used in office machinery, paper machinery, printing machinery, printing presses, insulated jacket, etc.
(MM) | (MM) | wall thickness post-shrink |
|
2.0 | 1.6 | 0.15-0.2 | 1 |
3.0 | 2.2 | 0.15-0.2 | 1 |
4.0 | 3.0 | 0.2-0.25 | 1 |
4.5 | 3.3 | 0.2-0.25 | 1 |
5.5 | 4.3 | 0.2-0.25 | 1 |
7.0 | 5.1 | 0.2-0.35 | 1 |
7.9 | 6.0 | 0.2-0.35 | 1 |
10.6 | 7.4 | 0.3-0.45 | 1 |
12.5 | 8.8 | 0.3-0.45 | 1 |
14.5 | 10.7 | 0.3 | 1 |
17.3 | 12.8 | 0.4 | 1 |
19 | 16.5 | 0.5 | 2 |
21 | 18.5 | 0.5 | 2 |
24 | 19.5 | 0.5 | 2 |
26 | 21.5 | 0.5 | 2 |
30 | 24 | 0.5 | 2 |
33 | 27 | 0.5 | 2 |
the largest diameter can be to 500mm
