原産地: | 中国(本土) | 銘柄: | Naidian | モデル番号: | ZJN |
包装
包装: | 標準的な輸出パッキング |

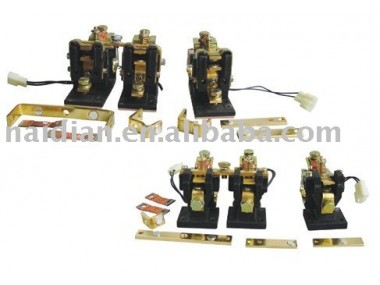

ZJN DC contactor
Usage:
ZJN100A200Aseries contactors are suitable for electric control system of electromobile, motor forklift truck, especially for the maintenance of vehicles.
Brief Technical data:
Number | Type and parameter | Coil& rated volt of contact circuit(v) | |||||||
12 | 24 | 30 | 36 | 40 | 48 | 72 | 80 | ||
1 | ZJN100A coil hold currentA | 0.83 | 1.65 | ||||||
2 | ZJN200A coil hold currentA | 0.73 | 1.45 | ||||||
3 | ZJN100A main rated load current of contact circuitA | Resistive load=1ms,100AInductive loadDC-560%lefor resistive load Max.Rated working current of contact circuit for400A10msMax, | |||||||
4 | ZJN200A main rated load current of contact circuitA | Resistive load=1ms,200A Inductive loadDC-560%le for resistive load Max.Rated working current of contact circuit for 800A10ms | |||||||
5 | voltage | 50Hz 1000V AC 1min | |||||||
6 | Operating time | pickup(contact makes)30ms:release(contact breaks)30ms | |||||||
7 | Action characteristic | pickup(contact makes)66%Us release(contact breaks)30%Us,5%Us | |||||||
8 | Mechanical life | 1 million times | |||||||
9 | Electric life | Resistive load:50000times Inductive load 60%le for resistive load 20000times |
Environmental condition:
1. Ambient temperature:-25~+40
2. Altitude range:0~2000m
3. Max.relative humidity90% at 25
4. Vibration:10~50Hz10m/s2
5. Shock:30m/s2
6. Installation method:anywher
7. Voltage fluctuating:0.7~1.1Ue
8. Duty:8h continuous
