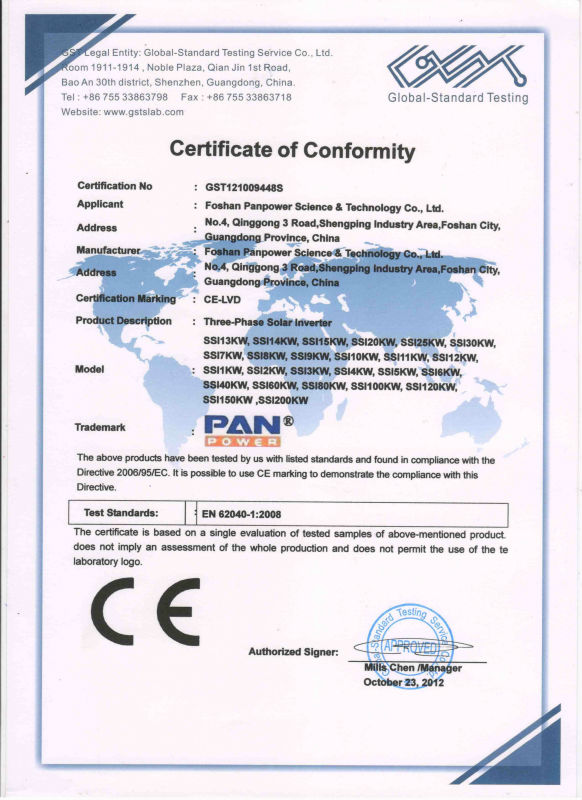

| 出力電圧: | 380ボルト/ 400/415vac | 出力頻度: | 50/60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | panpower | モデル番号: | SSI3-15KW | 入力電圧: | 48vdc | 重量: | 150キログラム | サイズ: | 765*330*720ミリメートル | タイプ: | DC/ACインバーター | 出力タイプ: | 三倍 | 出力電流: | 22.7Aあたり相 | 出力電力: | 15kw | オフグリッド: | はい | 低周波数: | はい | 波形: | 純粋な正弦波 | 相: | 三相 | dc/ac入力: | 両方サポート(制御することができる) | 出力接続: | ターミナルブロック | パッケージ: | 木製ケース | アプリケーション: | ソーラー&風力発電システム | 証明書: | ce &ロッシュ | 保証: | 12ヶ月 |

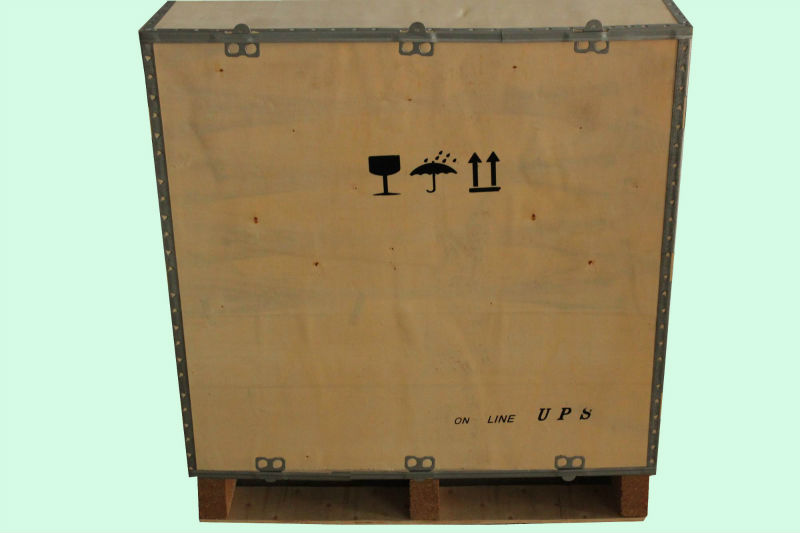

包装
| 包装: | パッケージ:木製ケースパッケージサイズ: 765*330*720ミリメートルマシンサイズ: 900*410 * 880ミリメートル |

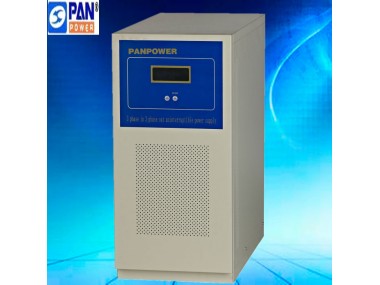

380V/400V/415V AC Ouput 15000 Watt Power Inverter With CE
SSI3 / 3 series DC to AC three-phase inverter combine the most advanced online technology and the latest network communication technology, providing a complete power solution for strict demand applications. It is with small size, light weight and high efficiency. There is almost no noise in mains power state. With PWM invert technology, inverter power outputs pure sine wave, applying to capacitive, inductive and nonlinear mixed-load,with superior load capacity,Perfect protection fuction:overload, short circuit, low battery voltage, improper operation etc,which won’t cause mechanical failures.This Inverter is very suitable for solar power systems, wind power generation systems, wind and solar hybrid generation systems.Mainly use in home, office and industrial .
Features
♦DC 48V to AC 380/400/415V
♦ Intelligent CPU controlling technology
♦ High efficiency PWM invert technology design
♦ Compltely auto stable voltage output
♦ High/low voltage and input/output protection
♦ output overload/over temperature warning and protection
♦ Srong load-taking capacity
♦ low self-consumption on no load state
♦ Enable to connect single phase and three phase load at the same time
♦ LCD display and buzzer tips .
♦ Adopting SMT Craft
♦ Elegant design ,attractive and durable
♦ AC mains bypass is optional
AC Grid And Solar Energy Interactive Inverters
Our this kind of inverter combine AC grid and solar energy,At first , the solar energy will charge the battery by the solar controller, then inverter will convert battery power(DC) to AC which the people can use . But when it is have no solar energy in night and rainy day , The inverter will automatically switch to AC grid and continue to power the load at once.
Three Phase Inverter Specification
5Kw to 15KW 48VDC Solar Inverter | |
Input rated voltage | 48VDC(range :42VDC to 55VDC) |
Battery type | maintenance free,lead acid battery |
Power factor | 0.8 |
Max efficiency | ≥87%(100%load) |
Output mode | Inverter priority |
The number of phase | 3L+N+G |
Output rated voltage | 380/400/415VAC 3-phase 4-wire ±1% |
Frequency | 50HZ±1% |
Wave form | Pure sine wave |
THD | ≤3% |
Protection function | overload,short circuit,low battery voltage,high/low AC mains voltage |
Overload capacity | 100-150% overload for 20 seconds to issue emergency alarms (automatically return to the normal state if decreasing the loads) Then turn off; 150% overload instant off. |
Fault | the machine switch to bypass |
Low battery voltage | 1 emergency alarm for 1 second, the battery is discharged and transferred to the bypass state ,(Pls note that the battey can’t charged at this time ), when the battery up to 55V from solar panel, go to the inverter state again . |
Unattended features | In the bypass state, AC mains failure, the machine is shut down, the machine automatically turn on when the AC come back again |
Bypass | 3L+N+G |
AC/inverter convertion | Slow start (output voltage from small to large for 3 seconds) |
Man-machine interface | LCD input phase voltage/frequency/battery voltage |
Ambinet temperature | 0—40°C |
Humidity | 20—90% noncondensing |
Noise | ≤40DBA(for 1 meter distance) |

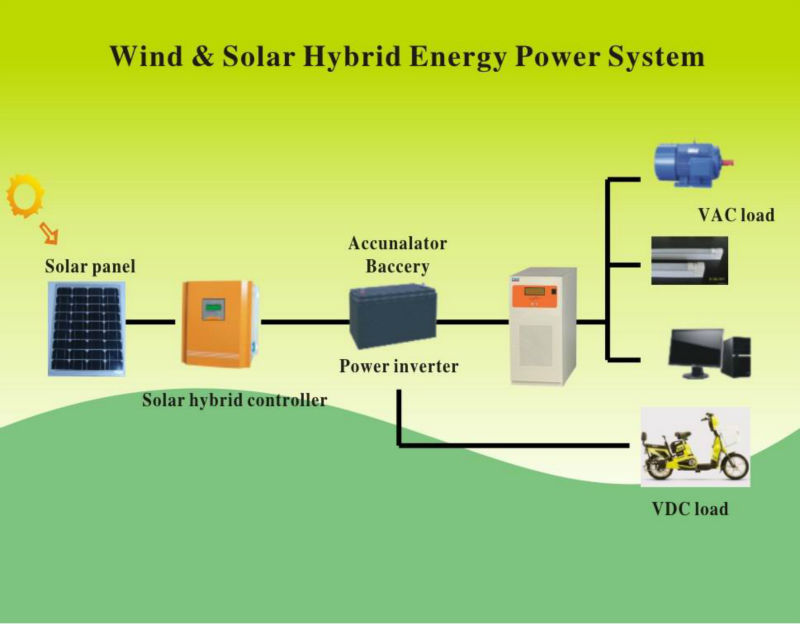

Solar /Wind Power System
There are two kind of 3phase inverter is as following , Which one is more suitable for you ? Pls don't hesitate to contact us , Welcome to you inquiry , Thanks !
1)When connect with both battery and utility power , the inverter with preferentially to drive the loads with DC power from batteries ,when the capacity of batteries is not enough ,the 3phase inverter will automatically switch to drive the loads with utility power .This is DC first solar enegy and utility power complementary power generation system
2)When connected with batteries under the condition without utility power ,the 3phase inverter will directly drive the loads with DC power from batteries ,This is off grid solar energy generation system.
Pls note that Our all inverter is off grid type ,Pure Sine Wave ,and it is mainly used in Solar/Wind Power System for saving energy and stord energy,We als can manufacture 24vdc 1 phase inverter from 500va to 1500va,48vdc 1 phase inverter from 2kva to 6kva and 192vdc 1 phase inverter from 8kva to 40kva. Are you interested in 1phase inverter , Pls Pick up your mouse and send the demand to me , I am waiting for you .
