| 出力電圧: | ±3%220vac | 出力頻度: | 50hz±0.05hz | 原産地: | 中国(本土) | 銘柄: | 編んだ一房の髪 | モデル番号: | Tls- 1kva | 入力電圧: | 12v、 24v | 重量: | 19キログラム | サイズ: | 240*330*240mm | タイプ: | DC/ACインバーター | 出力タイプ: | 単一 | 出力電流: | P/v | 出力電力: | 1000w | 名: | グリッドソーラーインバータオフ1000w充電器付き | アプリケーション: | グリッド太陽系オフ | 純粋な正弦波: | はい | 色: | 白 | 充電器: | はい | 冷却システム: | ファン | 変圧器: | はい | pwm: | はい | 壁に付着する: | はい |
包装
| 包装: | カートン |

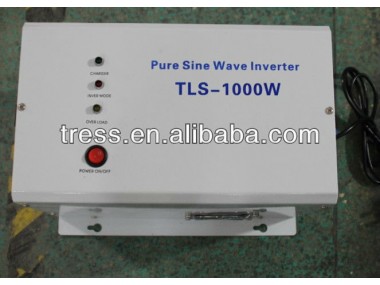

Product Name 1000w off grid solar inverter with charger
Summarize:
Sine wave series inverter is one of the most advanced DC to AC conversion products in the world, the main advantages is high quality sine wave AC output, microcomputer control, humanness design, it’s simple, stable, no noise and no pollution. It is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine etc. The inverter also can supply AC voltage to all kinds of power tools, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other power supply.
The inverter output waveform is sine wave, this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.
Features:
* Faceplate show working status and fault type
* Over voltage under voltage automatic return to work after normal
* Manage charge and discharge electricity with many kinds and capability of accumulator.
* With three stage charges for battery choice
* Protect Inverter overload, under voltage, over voltage, over temperature, short circuit.
* High conversion rate, high instantaneous power and low no-load wastage
* Small size, high efficiency, quiet operation
Technical data:
| Model | TLS-1KVA | |
| Rated power | 1000W | |
| Battery voltage | 24V | |
| Maximum discharge current | 54A | |
| Output current | 4.5A | |
| Charge current | 2.5A-3.0A | |
| Charge function | Charger inside(optional) | |
| Instant maximum power | 150% technical data, 5sec | |
| Output voltage | 220V AC ±3% | |
| Frequency | 50Hz±0.05Hz | |
| No-load power | 0.8A DC | |
| Waveform distortion(THD) | ≤5%(Linear load) | |
| Noise | ≤50dB | |
| Inverter efficiency | ≥85% | |
| Work environmental temperature | -10°C~60°C | |
| Work environmental elevation | ≤1000m | |
| Work environmental Humidity | ≤90%RH | |
| Protection | Inverter overload,over voltage,over temperature,short-circuit protection; normal voltage over-voltage auto-recovery | |
| Dimension (mm) | 240*330*240mm | |
| Gross Weight (kg) | 19KG | |
