| 出力電圧: | 220ボルト | 適用: | テレコミュニケーション | 原産地: | 中国(本土) | 銘柄: | hi-負荷 | モデル番号: | HP1102KS | 重量: | 8kgs | 段階: | 単一フェーズ | タイプ: | オンラインで | 保護: | 過電圧 | アプリケーション: | 敬意ups、ネットワーキング | 入力電圧範囲: | 115-300VAC | 公称容量: | 2kva | サイズ: | 190 * 383*318ミリメートル | 相番号: | 単相 | 力率: | 0.8 | ノイズ: | <デシベル | 保護: | 過負荷、短絡、過電圧、過電流 | 波形: | 純粋な正弦波 | 機能: | homeage ups |
包装
| 包装: | ups無停電電源で輸出カートン |

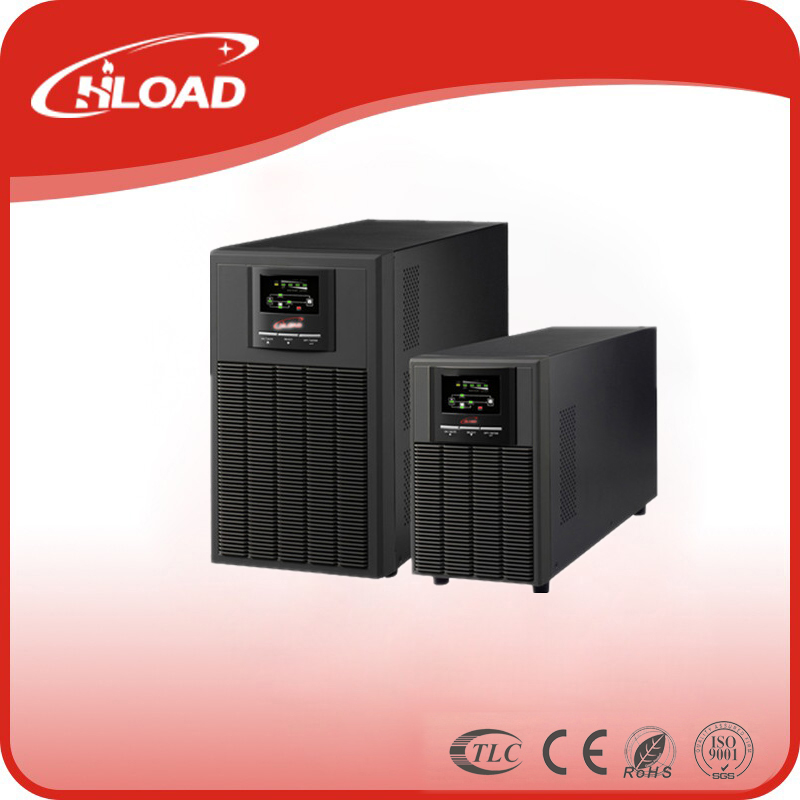

3 phase 2kva 3kva 6kva 10kva online ups homeage ups
Product Description
online ups Technical specifications:
model | HP1101KS | HP1102KS | HP1103KS | HP1106KS | HP1110KS | HP3110KS | HP3315KS | HP3120KS | |
| capacity | 1KVA/800W | 2KVA/1.6KW | 3KVA/2.4KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW | |
| phase number | Single phase | Three phase | |||||||
| output | |||||||||
| voltage range | 115-300VAC | 176-276VAC | 210-487VAC | ||||||
| frequency range | 47~53Hz or 57~63Hz | ||||||||
| power factor | ≥0.99@ nominal voltage(100%load) | ||||||||
| output | |||||||||
| output voltage | 220/230VAC±1% | ||||||||
| frequency range | Synchronization with input(AC) 50Hz±0.2Hz or 60Hz±0.2Hz(battery mode) | ||||||||
| power factor | 0.8 | ||||||||
| switching time | 0ms | ||||||||
| output waveform | pure sine wave | ||||||||
| overload capacity | load<105%,long-time running,105%< load <125%>1min,125%<load<30ms | ||||||||
| battery | |||||||||
| battery model (standard machine) | 12V7AH×3 | 12V7AH×6 | 12V9AH×6 | 12V7AH×16 | 12V7AH×16 | 16pcs(16-20) | |||
| Dc voltage(Long-acting machine) | 36VDC | 72VDC | 96VDC | 192VDC | 192VDC | ||||
| Size(standard machine) | 145*355*220 | 190*383*318 | 190*433*318 | 248×500×616 | |||||
| size(Long-acting machine)) | 145*285*220 | 400*145*240 | 400*190*340 | 460×190×340 | 592×250×576 | 592×250×826 | 815×250×826 | ||
| operating environment | |||||||||
| humidity | 20-90%RH@0-40ºC (Non-condensate) | ||||||||
| Noise | <45dBA@1Meter | ||||||||
| control supervisor | |||||||||
| Smart RS-232/ selec USB | support Windows ® 2000/2003/XP/Vista/2008 | ||||||||
| selectSNMP | Power management support SNMP management and network management | ||||||||
online ups Key Features:
1. Double conversion on-line design, including output isolation transformer
2. Wide input voltage design, the remarkable grid adaptability
3. Zero switching time, pure sine wave output
4. Durable and reliable industrial design, strong load compatibility
5. DC emergency start function
6. Perfect protection function, standard configuration have lightning and surge protection
7. Intelligent monitoring function, can optional SNMP card
8. Large-screen high-definition LCD Chinese and graphical display,6-inch extra large LCD that display 12 language( English/Russian/Spanish/French^)
9. Fully meet saltus of the load from 0 to 100%
online ups Competitive Advanbtages:
1: two Years' warranty for Online UPS.
2: Good aftersales service, Professional technical support before and after sales 3: Timely response, fast delivery time and flexible operations to satisfy any customers' special request
4: Free OEM & ODM Service
5: Competitive price and quality
FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production.
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. only except the longlife. Copper is better and also higer price.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs and big capacity near 3000pcs.
Q 8.wher is your market?
A. Our products are popular in russia, indonisia, Philippines,italy, america, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9.Does the inverter connect with solar system ?
A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in officer equipment,household items,power tools ans etc..
Q10. what kind of certificate you have ?
A. Our company already achieve ISO, ccc, and for products, we have CE, SONCAP, GOST, UL(pending) .
IF YOU HAVE ANY QUESTION,FEEL FREE TO ConTACT ME PLEASE!!!
