| 出力電圧: | 12v | 出力頻度: | 0 | 原産地: | 中国(本土) | 銘柄: | 行為 | モデル番号: | lp22 | 入力電圧: | 100~265vac | 出力タイプ: | 単一 | 出力電流: | 8.3a | 出力電力: | 51 - 100W | 寸法: | 153*88*47mm( l*w*h) | シェル材質: | アルミ合金 | 正味重量: | 周りに1045g |
包装
| 包装: | pp袋、 紙箱、 発泡ドリンクバブルバッグとカートンの包装。 |

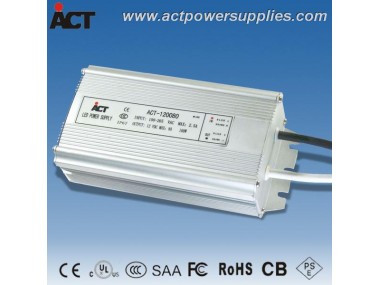

CE approved 12V 100W waterproof LED transformer ;
Certifications: CE, UL, SAA, FCC, CCC and ROHS.
IP67 rated
Features:
- AC input range: 100-265V
- Buit-in active PFC function(Optional)
- Potections: Short circuit / Over load / Over voltage / Over temperature
- Cooling by the air convection
- OCP point adjustable through internal potential meter
- Suitable for LED lighting/strip and moving sign applications
- IP67 design for indoor or outdoor installations
- Compliance to worldwide safety regulation for LED lighting
- Certifications: CE, UL, SAA, FCC, CCC and ROHS
- EMC standard: (EN55022, CISPR22, FCC part 15) class B, EN61000-3-2, -3-3 and EN55024.
- Suitable for dry / damp / wet locations
- 2 years warranty
Specification | |
Model number | LP22 |
AC Input | |
Input Voltage Range | 100-265V |
Frequency Range | 47-63Hz |
|
|
DC Output | |
Output Voltage | 12V±1% |
Output Current | 0-8.3A |
Rated Power | 100W |
Protection | Over Voltage,Load & Current / Short Circuit / High Temp. |
Protection Reset | Automatic |
Other Parameters | |
Store Temperature | -40-85°C |
Working Temperature | -25-65°C |
Waterproof Level | IP67 |
Housing Dimensions | 153*88*47(L*W*H) |
Weight | Around 1045g |
Electric Wire Input | Optional |
Electric Wire Output | Optional |
Certificates | |
Certificates | CE,UL,SAA,FCC,CCC,ROHS |
