| 原産地: | 中国(本土) | 銘柄: | pf | モデル番号: | Pf-664 | 出力タイプ: | DC | 関係: | プラグを差し込みなさい |
包装
| 包装: | pe袋、 輸出カートン |

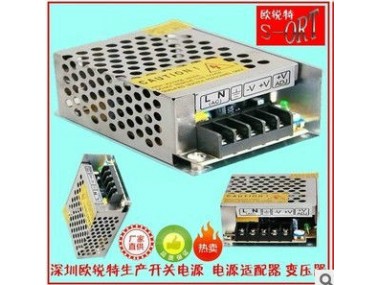

12V 36w led power Source with CE
AC input voltage range ......... 170~264VAC selectable by switch |
| AC inrush current ................. Cold start, 15A at 115VAC, 30A at 230VAC |
| DC adjustment range ........... 10% rated output voltage |
| Overload protection ............ 105%~150% fold back current limiting, auto-recovery |
| Setup, rise, hold up time ...200ms, 100ms, 30ms at full load and 230VAC |
| Withstand voltage ................ I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, 1 minute |
| Working temperature ........... 0~60OC (refer to output derating curve) |
| Safety standards ................. Design refer to CE |
| EMC standards .................... Design refer to FCC part 15 J |
| Connection .......................... 5P / 9.5mm pitch terminal block |
Model No. | Output | Tol | R&N | Effi. | Connection | Demesion(mm) |
GS1202 | 24W/12V 0-2A | ±1% | 100mV | 82% | 5P/9.5mm | 95*58*25 |
GS2401 | 24W/24V 0-1A | ±1% | 150mV | 87% | 5P/9.5mm | 95*58*25 |
GS1203 | 36W/12V 0-3A | ±1% | 100mV | 82% | 7P/9.5mm | 105*78*63 |
GS2402 | 36W/24V 0-2A | ±1% | 150mV | 87% | 7P/9.5mm | 105*78*63 |
GS1205 | 60W/12V 0-5A | ±1% | 100mV | 82% | 7P/9.5mm | 130*98*38 |
GS2403 | 60W/24V 0-2.5A | ±1% | 150mV | 87% | 7P/9.5mm | 130*98*38 |
GS1208 | 100W/12V 0-8A | ±1% | 100mV | 82% | 9P/9.5mm | 160* 98*38 |
GS2404 | 100W/24V 0-4A | ±1% | 150mV | 87% | 9P/9.5mm | 160* 98*38 |
GS1213 | 150W/12V 0-13 | ±2% | 100mV | 82% | 9P/9.5mm | 200*100*38 |
GS2407 | 150W/24 0-6.5 | ±2% | 150mV | 87% | 9P/9.5mm | 200*100*38 |
GS1217 | 200W/12V 0-17A | ±2% | 100mV | 82% | 9P/9.5mm | 200* 110*50 |
GS2408 | 200W/24V 0-8A | ±2% | 150mV | 87% | 9P/9.5mm | 200* 110*50 |
