| 原産地: | 中国(本土) | 銘柄: | canke | モデル番号: | Ck-b05 | 出力タイプ: | vga | 使用法: | ラップトップ | 関係: | プラグを差し込みなさい | 名: | にミニdpvga | コネクタ: | Gold/ニッケル( オプション) | 色: | 黒/white( オプション) |
包装
| 包装: | のpolybag、 pe袋、 opp袋、 ブリスターパッケージ |

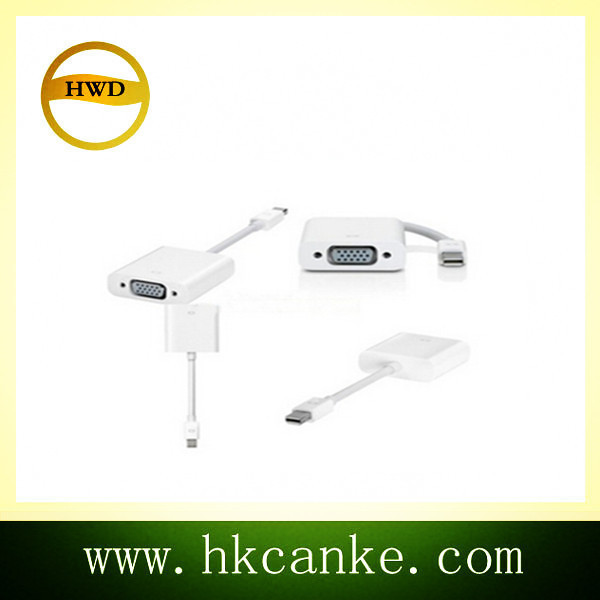

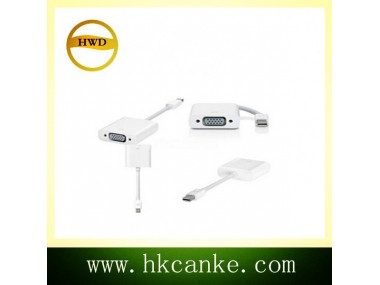

Mini DP to VGA
Description:
| Plug Type | mini DP TO VGA, Male to Female |
| Conductor | Oxygen free copper,Tinned copper |
| Wire gauge | 30AWG 32AWG |
| Connector | gold plated or nickel plated |
| Jacket | PVC |
| Marking | No marking |
| Color | Black, white optional |
| OD | 5.5mm |
| Ferrite core | Optional |
| Length | 0.2m |
| Certificated | ATC, UL, CE, RoHS, REACH |
| Compatibility | Connecting a Mini DisplayPort or Thunderbolt equipped Computer or Video Graphics Card to the VGA cable of a TV, Monitor or Projector (Mini DP to HDMI only). Supports video resolutions to 1080P (Full HD) and 19201200. Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output. Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwidth over 2 lanes. No installation software or drivers required providing a simple plug and play solution. |
| Package | Polybag,PE bag,OPP bag, bag with paper card, gift box, blister (Optional) |
Details:
| QC | 100% open and short tests |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M ohm min |
| Contact Resistance | 3 max |
| Working Temperature | -25C-80C |
Pictures:
