| 原産地: | 中国(本土) | 銘柄: | sanik (またはoem) | モデル番号: | sanik li-p 302740 285 mah | 公称電圧: | 3.7ボルト | 公称容量: | 285 mah | サイズ: | 3.0*27*40ミリメートル | prodcut属性: | リチウムポリマー電池 | 保証: | 一年 |
Main Paratmeters
NO | Items | Criteria | Remarks |
1 | Weight (g) | Approximate 8g |
|
2 | Typical Capacity | 285mAh | 0.2C charge and 0.5C discharge for cut-off voltage
|
3 | Nominal Voltage | 3.70V |
|
4 | Internal Impedance | ≤90 milliohm | AC 1KHz after standard charge |
5 | Charge voltage | 4.20V |
|
6 | Standard charge current | 57mA | CC/CV |
7 | Max. charge current | 285mA |
|
8 | Standard dis-charge current | 57mA |
|
9 | Max. discharge current | 285mA |
|
10 | Discharge cut-off voltage | 2.75V |
|
11 | Operating Temperature | 0~+45°C | Charging |
-20~+60°C | Discharging | ||
12 | Storage Temperature | within 1 month: -5 °C~+45°C |
Relative humidity: 65±20%RH |
within 3 months: -5 °C~+35°C | |||
within 6 months: 0 °C~+35°C |

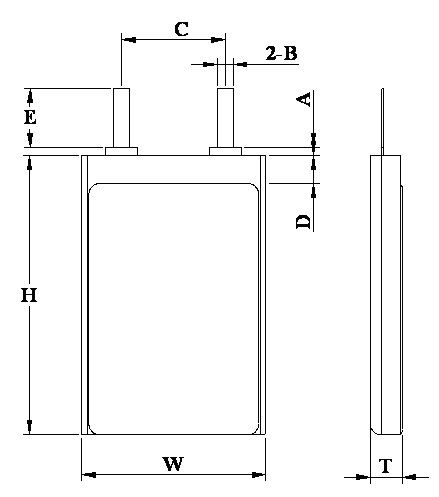

Battery Dimension
Items | Description | Dimension and Spec |
T | Thickness | 3.0mm Max |
W | Width | 27.5mm Max |
H | Height | 40.0mm Max |
Standard Charge
0.2CmA=57mA
Full charge condition: Constant current 0.2CmA,Constant voltage 4.2V for 6.0hours in all at 25±2°C.
Temperature Dependence of Capacity (Discharge)
Cells shall meet the discharge capacity requirements listed in the below table under respective discharge temperatures. The capacities are to be measured with constant discharge current 300mA (2.75V cut-off) after standard charge at 25±2°C.
Discharge Temperature | -20°C | 25°C | 60°C |
Discharge Capacity | 50% | 100% | 90% |
Cycle Life
30min rest period after standard charge, 0.2CmA discharge to a cut-off voltage of 2.75V, 30min rest period, the capacity shall be measured after 300 cycles of standard charge and discharge at 25±2°C.
Capacity ≥ 228mAh
Charge Retention
Item | Measuring Procedure | Requirements | |
Storage Characteristics 1
| 1 | The capacity on 0.5CmA discharge shall be measured after standard charge and then storage at 25±2°C for 30 days. | Remaining Capacity ≥85% |
Storage Characteristics 2 | 1 | The capacity on 0.5CmA discharge shall be measured after standard charge and then storage at 60±2°C for 7 days. | Remaining Capacity ≥60% |
2 | After above measured Remaining capacity, the capacity on standard discharge shall be measured after standard charge. | Recovery capacity ≥80% | |
Shipping
Cargoes can be shipped by DHL/FEDEX/UPS/TNT and so on.
Other shipping terms can also be arranged according to specific requirements.
Warranty
The warranty period is one year.
Main applications
(1) Portable electronic devices
(2) Blue tooth headset,
(3) Digital camera,
(4) MP3 player, MP4 player,
(5)Cellular phone, Digital phone, mobile phone,
(6) PDA,
(7) DMB,
(8) DVD, Portable DVD
(9) MD,
(10) Digital camcorder, Digital camera
(11) Mining lamp,
(12) Notebook computer, Portable computer, Lap-top computer
(13) FRS,
(14) E-book,
(15) Flashlight,
