| 出力電圧: | 220ボルト、380ボルト、 | 出力頻度: | 50または60 ｈｚ | 原産地: | 中国(本土) | 銘柄: | サンディまたはoem | モデル番号: | SDS-4KW | 入力電圧: | 100-500ボルト | 出力電力: | 4000ワット |
包装
| 包装: | ハニカムボックス+木製ストック |

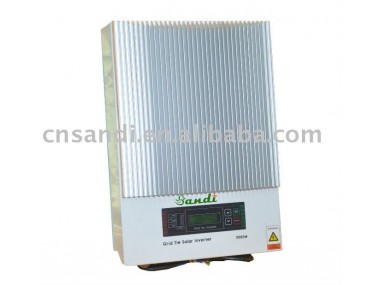

Model | SDS-4000W | |
DC Input | MPPT Voltage Range | DC100 ~ 500V |
Rated DC Voltage | 200-400V | |
Control System | MPPT | |
AC Output | Output Power | 4000W |
Rate voltage | AC220 | |
Voltage range | AC 185 ~ 264V (1 phase) | |
Normal Grid Frequency | 50/60Hz(Grid frequency) | |
P hases | 1 phase 2 wire | |
Power Factor | 0.95 | |
Current THD | At rated power and in the sine wave < 3. 5% | |
Control System | PWM | |
Anti-islanding | ≤0.5 sec | |
Total Max.Current | 18A | |
Max. Efficiency | 97% | |
Euro Efficiency | 96.4% | |
Structure | Protection Class | IP65 |
Cooling system | Natural cooling | |
Noise | 25dB | |
Data Interfaces | External RS232C/RS485 | |
Display | LCD | |
Packing Dimensions (W*H*D) | 510*430*210mm | |
Net weight | 16 kgs | |
Gross weight | 17.5kgs | |
Protection | Inverter | Input over voltage, output short circuit, overheat, output DC component. |
Grid | Anti-islandin g, over/under voltage of grid, over/under frequency of grid. | |
Environment | Environm, , , ent | No corrosion gas, flammable gas, oil mist, dust etc. |
Operation temperature | -10 °C ~40 °C ( 50 °C ) | |
Stored temperature | -20 °C ~ 65 °C | |
Relative humidity | 0~100% (Do not wet with dew) | |
