| 出力電圧: | 50-750vdc | 出力頻度: | 50 | 原産地: | 中国(本土) | 銘柄: | tonhe | モデル番号: | th100q100nz | 入力電圧: | 380vac+- 15％ | 出力電流: | 20-200a | 出力電力: | 10-100kw |
包装
| 包装: | 合板2260*1050*1050mmパッケージ( h*w*d) 260キログラム |

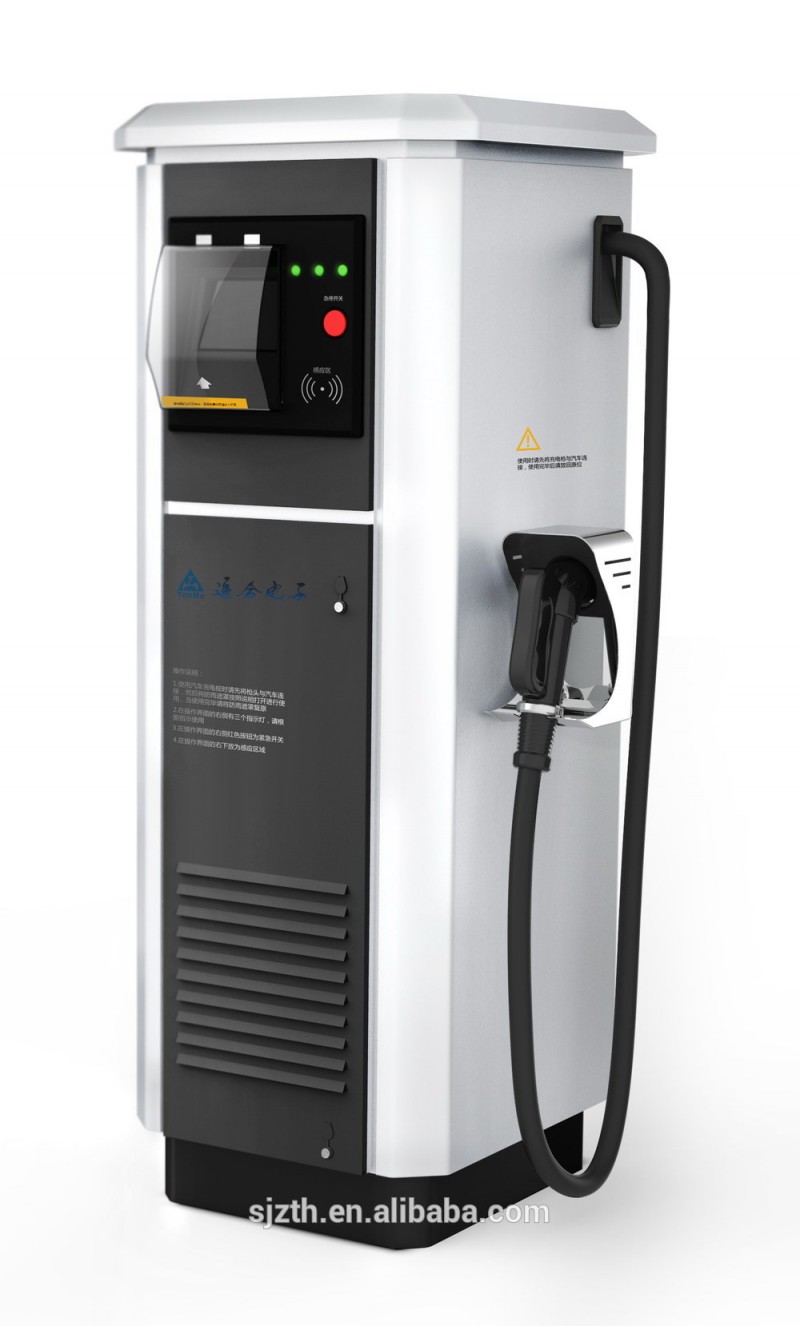

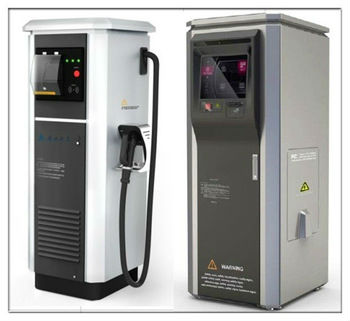

50-750VDC On board EV Battery charger High Power EV Charger
Specifications:
Output | |
Power | 100KW max (10-100kw) |
Voltage | 50-700VDC |
Current | 5-200A |
Efficiency | ≥90% |
Power factor | 0.9 /0.99 |
Ports | 2 |
Connector | TBD (need discuss) |
Input | |
Voltage | 380VAC ±15% |
Frequency | 50-60Hz |
General | |
Dimension | 2000H*1000W*1000Dmm (without the move round) |
Weight | 260kgs (may vary) |
Ambient conditions | |
Storage temperature | -40°C-60°C |
Operating temperature | -20°C-50°C |
Altitude | ≤2000m |
Humidity | ≤90% |
Additional features | |
Safety: IP54 | |
Special design, with move round, fast, convenient and easy to use. (move round is optional) | |
User friendly, interactive touchscreen display | |
Capable of providing an 80% charge less than 30minutes | |
Metering and billing system | |
Applicable Vehicles
