| 原産地: | 中国(本土) | 銘柄: | masda | モデル番号: | s182 | 色: | 黒 |
包装
| 包装: | カラーボックス |

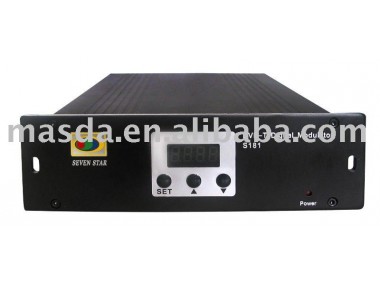

DVB-T Digital Signal Modulator:
With Encoder, modulator and Convertor (3 functions in 1 moudulator)
Typical Value:
Standard:DVB-T (ETS 300744)
Output Frequency:470-817MHz (Selectable)(0.5MHz Step)(Other Frequency can customize)
Bandwith:5MHz 6 MHz 7 MHz 8 MHz (Selectable)
Constellation: 4QAM(QPSK) 16QAM 64QAM (Selectable)
Color System :NTSC,PAL (Selectable)
Channel Logo:Setup (Optionally) (number and letter)
Guard Period:1/4,1/8,1/16,1/32
FEC:1/2,2/3,3/4,5/6,7/8
MPEG2 Code Rate: 2000kbs~20000kbs
MER: 32 -35 d B
C/N: 40 d B
Input:1 way Video + 2 way Audio (R/L) RCA connector
Output:1 way RF
Cable model(S182C):75Ω F connector Level:80 – 95 d BuV
Wireless model(S182W):50Ω SMA connector Level:-15 – 0 d Bm
Setting value by Panel LCD and key
