| 原産地: | 中国(本土) | 銘柄: | changlan | モデル番号: | jsd | タイプ: | 油圧引き手 | 名前: | ケーブル敷設機 | 定格電圧: | 380ボルト | 周波数: | 50 ｈｚ | 電源: | 電気 |
包装
| 包装: | による木製ボックス |

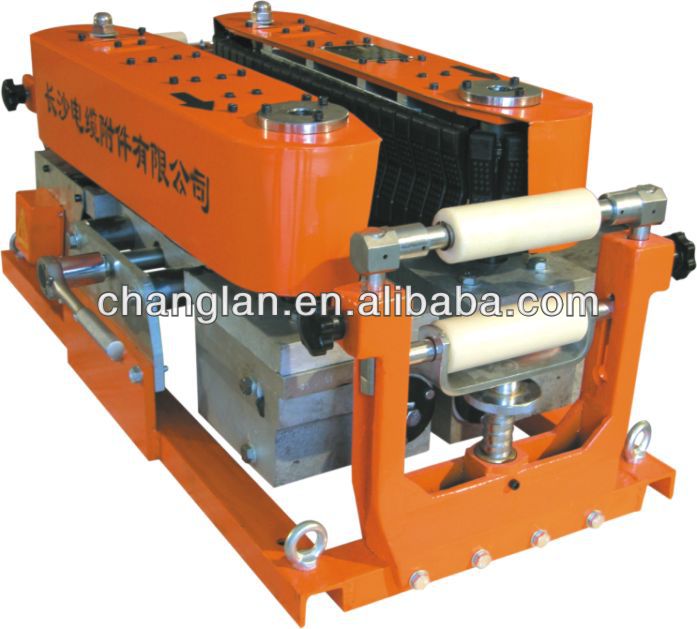

Cable laying Machine Cable pulling machine
Model No.: JSD-3,JSD-5B, JSD-5C,JSD-8
Application: JSD is a motor-driven machine for laying power cable (or communication cable)
Characteristic:
- Driven by double caterpillars to make sure that the delivery force and gravitational force will affect at two direction. It’s good to protect the insulation layer of cable.
- The delivery force will be transferred by caterpillar which made by high strength DRC. Force uniform and wear well.
- Equipped with adjusted barrel, easy to operate.
- It will be very convenient to be equipped with a reel at the upper part as a lower power tractor.
- Low noise, small temperature rise for and easy maintenance.
- We can provide other matching product like JSD electric control system(control box and branch box, four core sheath cable ) and reel as customer’s requirement.
- one control box can control 12 pieces JSD-3; 8 pieces JSD-5B / JSD-5C; 6 pieces JSD-8. Each hauling machine should equip one branch box.
Technical Data
Specification | JSD-3 | JSD-5B | JSD-5C | JSD-8 |
Cable Diameter(mm) | 48-140 | 74-180 | 48-180 | 48-180 |
Rated Delivery Force (kN) | 3 | 5 | 5 | 8 |
Delivery Speed(m/min) | 6 | |||
Clamping Force(N.m) | 50 | |||
Power Supply (VAC) | 380 | |||
Motor Power (kW) | 0.37X2 | 0.75X2 | 0.75X2 | 1.1X2 |
Net Weight (KG) | 155 | 165 | 185 | 270 |
Dimension (mm) | 920*500*370 | 970*485*385 | 1015*585*425 | 1238*680*475 |
This machine are selling well in U.A.E., Kuwait, India market.
Quality warranty & after sales service:
1. Secure prodction under ISO9001 & ISO14001 and OHSAS 18001 system;
2. 2-year warranty;
