| 原産地: | 中国(本土) | 適用: | 電気配電ネットワークまたは産業インストール | 銘柄: | qrunning、kukun | モデル番号: | VV22 VLV22 VV62 VLV62 VV23 VLV23 Z-VV22 Z-VLV22 WDZ-VV23 N-VV22 | タイプ: | 低電圧 | 絶縁材: | PVC | ジャケット: | pvcまたはpe | コンダクター材料: | 銅やアルミニウム | 導体: | アルミニウムまたは銅 | 電圧: | 低電圧 | フィラー: | 非吸湿性ポリプロピレン( pp) | バインダーテープ: | 不織布生地 |
包装
| 包装: | 木製ドラム; 鉄- 木製ドラム; スチールドラムやあなたの条件として |

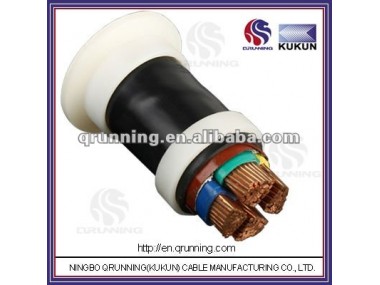

Specifications of Low Votage Armoured Cable:
1 Construction
Conductor: Copper (or Aluminium)
Insulation: PVC
Filler: Non-hygroscopic Polypropylene(PP)
Binder Tape: Non-woven fabric
Inner Covering: Polypropylene(PP) Tape or PVC
metallic Armour: Galvanized Steel Tape Armour(STA)
Non-magnetic Steel Tape Armour(only for single core)
Outer Sheath: PVC (or PE)
2 Standard
IEC 60502, GB/T 12706 or as your requirement.
3 Application
Used for fixed installations such as electric power distribution networks or industrial installations, which is laid indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical force, but unable to bear large pulling force.
4 Operating Characteristics
Rated Voltage: 0.6/1(1.2)kV
Max. Operating Temperature of Conductor: 70oC
Max. Short-circuit Temperature of Conductor: 160oC
Min. Ambient Temperature under Installation: 0oC
When the armoured single core cable used for Alternative Current(AC) system, the armour material should be non-magnetic.
Type | Description | Number of cores | Nominal cross section of conductor |
VV22 | CU/PVC/STA/PVC Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
VLV22 | AL/PVC/STA/PVC Power Cable | ||
VV62 | CU/PVC/Non-magnetic STA/PVC Power Cable | 1 | 1.5~1000mm2 |
VLV62 | AL/PVC/Non-magnetic STA/PVC Power Cable | ||
VY23 | CU/PVC/STA/PE Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
VLY23 | AL/PVC/STA/PE Power Cable | ||
Z-VV22 | CU/PVC/STA Flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
Z-VLV22 | AL/PVC/STA Flame-retardant Power Cable | ||
N-VV22 | CU/PVC/STA Fire-resistant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~1000mm2 |
