| 原産地: | 中国(本土) | 銘柄: | 洪祥 | モデル番号: | M8-m72 | 保護: | ip65 |

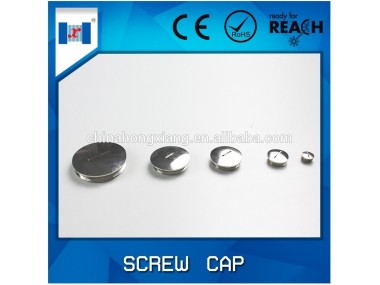

真鍮ストッププラグ
| agアイテム | コード | 糸の長さ( mm) | 高さ( mm) | スパナサイズ( mm) | |
サークルタイプ | 六角タイプ | ||||
| pg7 | Hx-scpg7c | Hx-scpg7h | 5 | 8 | 14 |
| pg9 | Hx-scpg9c | Hx-scpg9h | 6 | 9 | 17 |
| pg11 | Hx-scpg11c | Hx-scpg11h | 6 | 9 | 20 |
| Pg13.5 | Hx- scpg13.5c | Hx- scpg13.5h | 6.5 | 9.5 | 22 |
| pg16 | Hx-scpg16c | Hx-scpg16h | 6.5 | 9.5 | 24 |
| pg21 | Hx-scpg21c | Hx-scpg21h | 7 | 11 | 30 |
| pg29 | Hx-scpg29c | Hx-scpg29h | 8 | 12 | 40 |
| pg36 | Hx-scpg36c | Hx-scpg36h | 9 | 15 | 50 |
| pg42 | Hx-scpg42c | Hx-scpg42h | 10 | 16 | 57 |
| pg48 | Hx-scpg48c | Hx-scpg48h | 10 | 16 | 64 |
| M8・回; 1 | Hx-scm8c | Hx-scm8h | 5 | 8 | 12 |
| M10・回; 1 | Hx-scm10c | Hx-scm10h | 5 | 8 | 12 |
| M12・回; 1.5 | Hx-scm12c | Hx-scm12h | 5 | 8 | 14 |
| M16・回; 1.5 | Hx-scm16c | Hx-scm16h | 6 | 9 | 17 |
| M18・回; 1.5 | Hx-scm18c | Hx-scm18h | 6 | 9 | 20 |
| M20・回; 1.5 | Hx-scm20c | Hx-scm20h | 6.5 | 9.5 | 22 |
| M22・回; 1.5 | Hx-scm22c | Hx-scm22h | 6.5 | 9.5 | 24 |
| M24・回; 1.5 | Hx-scm24c | Hx-scm24h | 6.5 | 10 | 27 |
| M25・回; 1.5 | Hx-scm25c | Hx-scm25h | 6.5 | 10 | 27 |
| M30・回; 1.5 | Hx-scm30c | Hx-scm30h | 6.5 | 10 | 32 |
| M32・回; 1.5 | Hx-scm32c | Hx-scm32h | 7 | 11 | 35 |
| M36・回; 1.5 | Hx-scm36c | Hx-scm36h | 8 | 12 | 40 |
| M40・回; 1.5 | Hx-scm40c | Hx-scm40h | 8 | 13 | 45 |
| M47・回; 1.5 | Hx-scm47c | Hx-scm47h | 9 | 15 | 50 |
| M50・回; 1.5 | Hx-scm50c | Hx-scm50h | 9 | 15 | 55 |
| M54・回; 1.5 | Hx-scm54c | Hx-scm54h | 10 | 16 | 57 |
| M60・回; 1.5 | Hx-scm60c | Hx-scm60h | 10 | 16 | 64 |
| M63・回; 1.5 | Hx-scm63c | Hx-scm63h | 10 | 16 | 68 |
| M72・回; 2 | Hx-scm72c | Hx-scm72h | 10 | 16 | 78 |
