| 密封されたタイプ: | 密封される | 維持のタイプ: | 自由 | 電圧: | 12v | 原産地: | 中国(本土) | 銘柄: | leadhooまたはoem | モデル番号: | NP100-12 | 重量: | 29キログラム | サイズ: | 409*176*209*225ミリメートル | わずかな容量: | 100ah | 使用法: | UPS | 色: | 黒 | 重量: | 29キログラム | 番号の細胞: | 6 | 保証: | 1-3年 | 証明書: | ce & rohs | アプリケーション: | ups、ソーラー、照明、電気おもちゃ、など | タイプ: | ゲル、ディープサイクル、agm、opzv、opzs | 端子タイプ: | リードまたは銅 | バッテリーケース素材: | abs | oem: | 利用可能 |
包装
| 包装: | 各バッテリはopp袋、 カートンごとの1個、 が付いているカートンleadhooブランド、 標準的な輸出パッキング長距離輸送のため。 |

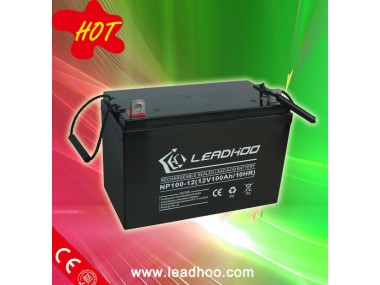

Deep Cycle battery 12v100ah Solar Battery
Leadhoo lead acid battery solar battery, ups battery, etc, Quality Control System
Quality Control System of Leadhoo applies the most advanced equipments and continual improved artworks to organize the production process. The QC department consists of IQC,IPQC, QA, QE, OQC, laboratory and testing subsidiaries’ which strictly meets ISO9001 quality system requirements from in-house material to batteries out warehouse to make sure the products are under the strict audit in the whole process.The defective rate is below 0.1%. Meanwhile, Leadhoo takes analytical pure material to make sure the batteries with high quality, long life, low self-discharge advantages.
12V 100AH Deep Cycle battery Application:
Solar street light system, solar power home system, control systems, power systems,
wind energy systems, telecommunications/communication systems and UPS systems, etc.
| Characteristics for lead acid battery, solar, ups, etc | |||
| Capacity 25°C(77°F) | 10 hour rate(10.0A) | 100AH | |
| 5 hour rate(16.0A) | 80AH | ||
| 1 hour rate(60A) | 60AH | ||
| 1.5 hour discharge to 10.5V | 40A | ||
| Intemal Resistance For Full Charged Battery at 25°C(77°F) | 5.5mΩ | ||
| Capacity affected by temperature(20hour rate) | 40°C(104°F) | 102% | |
| 25°C(77°F) | 100% | ||
| 0°C(32°F) | 85% | ||
| ~15°C(5°F) | 65% | ||
| Self-discharge at 25°C(77°F) | Capacity after 3 months storage | 91% | |
| Capacity after 6 months storage | 82% | ||
| Capacity after 12 months storage | 64% | ||
| Terminal | T11 | ||
| Charge(constant Voltage) | Cycle | Initial Charging Current less than 40A Voltage 14.10~14.40V | |
| Float | Voltage 13.50~13.80V | ||

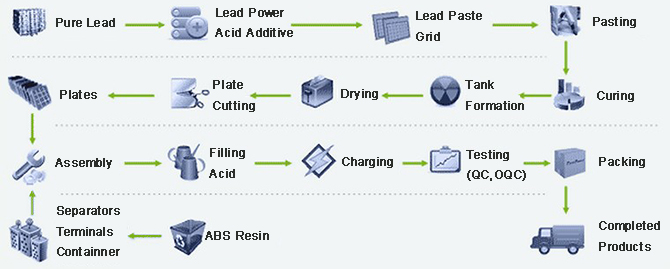

Process for SLA battery
