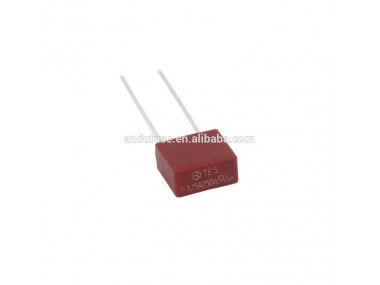

microfuse high voltage 392, 63mA-10A 125V,250V,400V
Description
TE5, fast-acting type, 125V/250V rated fuses, designed in accordance to UL 248-14.
Features
• Lead-free • Reduced PCB space requirements • Direct solderable or plug-in versions • Internationally approved
• Low internal resistance • Shock safe casing • Vibration resistant • Halogen Free • Available from 50mA to 6.3A
Applications
• Battery Charges • Consumer Electronics • Power supplies • Industrial Controllers
| % of Ampere Rating | Opening Time |
| 135% | 1 Hour, Min. |
| 200% | 120 s, Max. |
Electrical Characteristic Specifications by Item
| Amp Code | Rated Current | Voltage Rating | Breaking Capacity | Voltage Drop 1.0×IN max. (mV) | Power Dissipation 1.0×IN max. (mW) | Melting Integral 10×IN max. (A2s) | Agency Approvals | ||
| UL | CSA | PSE | |||||||
| 0050 | 50mA | 125V/250V | 100A / 250 VAC 50-60 Hz cos = 1.0 | 1600 | 85 | 0.0001 | |||
| 0063 | 63mA | 125V/250V | 1300 | 85 | 0.00013 | ||||
| 0080 | 80mA | 125V/250V | 1200 | 100 | 0.0002 | ||||
| 0100 | 100mA | 125V/250V | 1100 | 110 | 0.0013 | ||||
| 0125 | 125mA | 125V/250V | 1350 | 160 | 0.0019 | ||||
| 0160 | 160mA | 125V/250V | 1000 | 150 | 0.0037 | ||||
| 0200 | 200mA | 125V/250V | 950 | 210 | 0.0075 | ||||
| 0250 | 250mA | 125V/250V | 900 | 225 | 0.013 | ||||
| 0315 | 315mA | 125V/250V | 800 | 255 | 0.026 | ||||
| 0400 | 400mA | 125V/250V | 230 | 95 | 0.015 | ||||
| 0500 | 500mA | 125V/250V | 220 | 110 | 0.025 | ||||
| 0630 | 630mA | 125V/250V | 210 | 135 | 0.045 | ||||
| 0800 | 800mA | 125V/250V | 200 | 160 | 0.068 | ||||
| 1100 | 1.00A | 125V/250V | 190 | 190 | 0.13 | ||||
| 1125 | 1.25A | 125V/250V | 180 | 225 | 0.2 | ||||
| 1160 | 1.60A | 125V/250V | 170 | 275 | 0.39 | ||||
| 1200 | 2.00A | 125V/250V | 160 | 450 | 0.53 | ||||
| 1250 | 2.50A | 125V/250V | 150 | 375 | 1.1 | ||||
| 1315 | 3.15A | 125V/250V | 140 | 445 | 1.9 | ||||
| 1400 | 4.00A | 125V/250V | 130 | 520 | 3.2 | ||||
| 1500 | 5.00A | 125V/250V | 120 | 600 | 6.1 | ||||
| 1630 | 6.30A | 125V/250V | 115 | 850 | 9.7 | ||||
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
Temperature Derating Curve
Average Time Current Curves
Product Characteristics
| Materials | base/Cap Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 Round Pins Copper, Tin-plated |
| Lead Pull Strength | 10 N (IEC 60068-2-21) |
| Solderability | 260C, ≤ 3 sec. (Wave) 350C, ≤ 3 sec. (Soldering iron) |
| Soldering Heat Resistance | 260C, 10 sec. (IEC 60068-2-20) 350C, ≤ 3 sec. (Soldering iron) |
| Operating Temperature | –40C to +85C (consider de-rating) |
| Climatic Category | –40C to +85C/21 days (EN 60068-1, -2-1, -2-2, -2-78) |
| Stock Condition | +10C to +60C Relative humidity ≤ 75% yearly average, without dew, maximum value for 30 days - 95% |
| Vibration Resistance | 24 cycles at 15 min. each(EN 60068-2-6)10–60 Hz at 0.75 mm amplitude 60–2000 Hz at 10 g acceleration |
Dimensions
Packaging
| packaging Option | packaging Specification | Quantity |
| 12mm Tape and Reel | N/A | 1400 |
