| 原産地: | 中国(本土) | 銘柄: | trakou | モデル番号: | HRC4-15 | 容量の破損: | 高い | 安全基準: | IEC | 使用法: | 高圧 | 製品名: | ドロップアウトヒューズ切り抜き | ヒューズ管材料: | 繊維ガラス | oem/odm生産: | 許容できる | ポート: | 寧波、上海 | 標準: | IEC282 | 色: | グレー | パッキング: | カートン | 定格電流: | 100a/200a | 定格電圧: | 15KV-17KV | 証明書: | iso9001、ccc、ce、氷、ansi |
包装
| 包装: | カートン |
15kv-17kv Dropout Fuse Cutout
Specifications
Dropout Fuse Cutout Specifications:
The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The dro out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.
Main Data
| Type | Rated voltage (KV) | Rated current (A) | Breaking current (A) | Impulse voltage (BIL) | Power freq uency with stand voltage | Leakage distance (mm) | Weight (kg) | Dimensions (cm) |
| HRC4-15 | 15~17 | 100 | 10000 | 125 | 45 | 350 | 7.5 | 42x35x11 |
| HRC4-15 | 15~17 | 200 | 12000 | 125 | 45 | 350 | 7.5 |

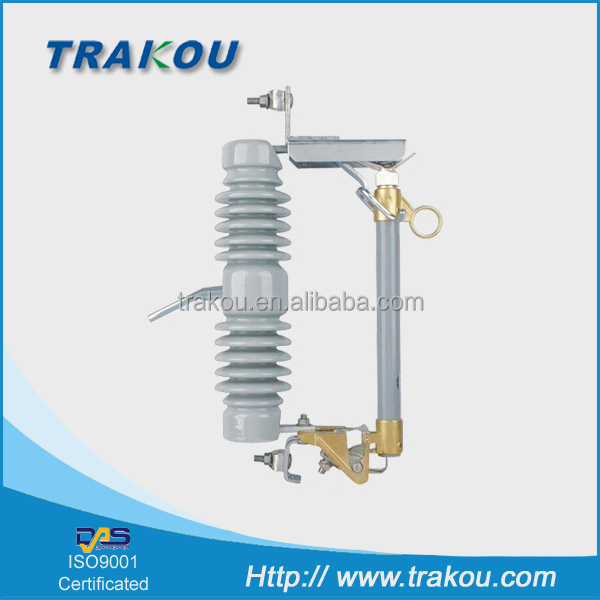

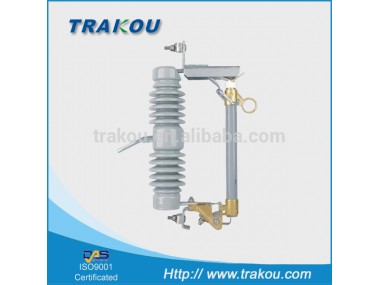

The oicture of dropout fuse cutout
