| 原産地: | 中国(本土) | 銘柄: | yinda | モデル番号: | xrnt | 容量の破損: | 高い | 安全基準: | IEC | 使用法: | 高圧 | 証明書: | iso、IEC60282 |
包装
| 包装: | カートン。 |

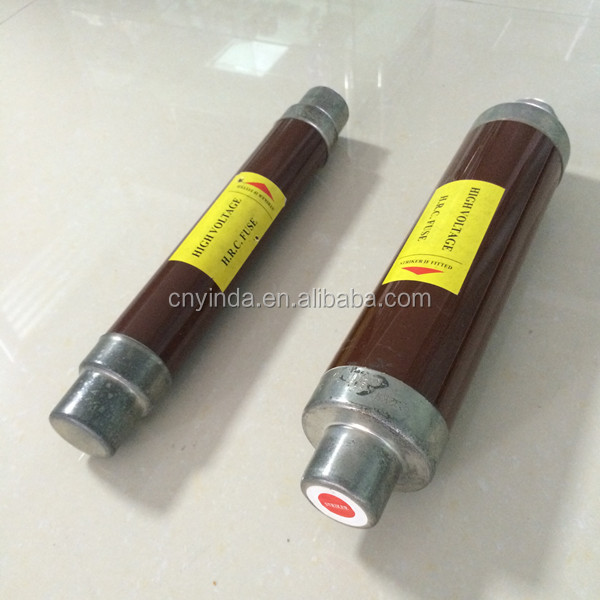

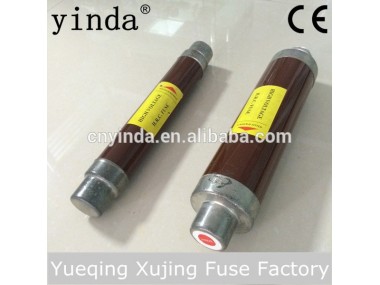

High Voltage Fuses,high-voltage fuse,HV current limiting fuse,medium voltage fuse,dro out fuse
XRNT(SDO.J,SDL.J,FDL.J,SFL.J,SKL.J,SXL.J,SDM.J,SFM.J,SKM.J,SXM.J,SDQ.J,SFQ.J,SXQ.J)
we also have fuse links for use in air and in oil
Model S transformer protection high breaking capability high current limiting is suitable for eleectical power system of AC 50Hz,rated voltage 3.6~40.5kv,the rated current to 200A for protecting transformer and other power equipment from short-circuit overload;it also may use wth load switch,vacuum contact and so on.This high-voltage fuse conforms to thenational standard GB15166.2standrad and the international electrical committee standard IEC60282 standard as well as the German DIN standard.other type:
Model W high breaking capability high voltage current limited fuse for protection motor:XRNM1(WDF.O,WDN.O,)
Model F scope protectiom high breaking capability high voltage current limited fuse :FDL
Model XRNP voltage fuse transformer protection high breaking capability high voltage current limited fuse:XRNP
| No. | Products model | Rated voltage (V) | Fuse body rated current (A) | Rated dropout current (A) | Overall dimension (mm) | Weight (g) | |||
| Home | Abroad | Drawing no. 8.1 | ΦD | L | |||||
| 0901 | XRNT1 | SDO.J | 3.6 | 6.310,16,20,25,31.5,40 | 31.5 | 9.1 | 51 | 192 | 1.12 |
| 0902 | XRNT1 | SDL.J | 7.2 | 6.3,10,16,20,25,31.5,40,50,63 | 31.5 | 9.1 | 51 | 292 | 1.47 |
| 0903 | XRNT1 | SFL.J | 7.2 | 80,100,125,160 | 31.5 | 9.1 | 76 | 292 | 3.15 |
| 0904 | XRNT1 | SDL.J | 12 | 6.3,10,16,20,25,31.5,40 | 31.5 | 9.1 | 51 | 292 | 1.47 |
| 0905 | XRNT1 | SFL.J | 12 | 50,63,71,80,100 | 31.5 | 9.1 | 76 | 292 | 3.15 |
| 0906 | XRNT1 | SKL.J | 12 | 125 | 31.5 | 9.1 | 76 | 292 | 3.15 |
| 0907 | XRNT1 | SXL.J | 12 | 160200 | 31.5 | 9.1 | 88 | 292 | 4.15 |
| 0908 | XRNT1 | SDM.J | 24 | 6.31016202531.540 | 31.5 | 9.1 | 51 | 442 | 2.7 |
| 0909 | XRNT1 | SFM.J | 24 | 50637180100 | 31.5 | 9.1 | 76 | 442 | 4.5 |
| 0910 | XRNT1 | SKM.J | 24 | 125 | 31.5 | 9.1 | 76 | 442 | 4.5 |
| 0911 | XRNT1 | SXM.J | 24 | 160 | 31.5 | 9.1 | 88 | 442 | 5.4 |
| 0912 | XRNT1 | SDQ.J | 40.5 | 3.156.310162025 | 31.5 | 9.1 | 51 | 537 | 2.9 |
| 0913 | XRNT1 | SFQ.J | 40.5 | 31.540 | 31.5 | 9.1 | 76 | 537 | 5.51 |
| 0914 | XRNT1 | SXQ.J | 40.5 | 63 | 31.5 | 9.1 | 88 | 537 | 6.5 |
