Product Description

        The patch panel used for wiring equipment or wiring workshop, and realize the main distribution and network or terminal equipment connection. Through the back of the IDC termination reeds termination horizontal or vertical cable, for clients to provide high-speed data transmission service.

product characteristics

• whole 50 μ gold-plated, insulation displacement airtight type card by technology, contacts never oxidation
• Can print the color change marked paper, accord with TIA/EIA-606 standard, port information management more clear convenient
• Distribution frames have long provided for sex port logo, convenient for construction and maintenance management
• 110 lineup of type of structure, make to wire back twist and separate core wires to more easily, construction of more efficient
• Back cable bracket control cable bending radius, provides the reasonable cable to management, guarantee the vertical direction into line, let after the construction system more stable, Richard line more clear handsome
• metal frame body structure, to ensure that the products of higher mechanical strength, provide excellent appearance quality

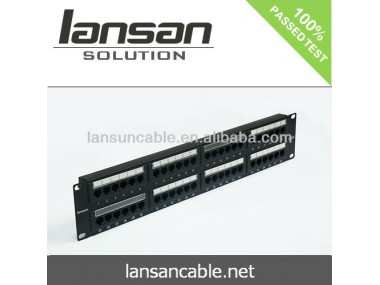

•  Provide 24 port 1 U and 48 port 2 U height distribution frames can choose, compatible T568A and T568B two Ø lineup kind of way
• Standard 19 "installation, application scope, installation, maintenance, simple and rapid expansion

Physical Features

• ·Assembled: phosphor bronze, whole 50 μ gold-plated
• · IDC terminal: Phosphor bronze, whole nickel plating, card by 22-26 AWG conductors
• · Plug and receptacle in the number and experiment. It 1000
• · Wire termination quartile number 300
• ·Richard line brackets: Plastic spraying steel + flame retardant polycarbonate UL 94 V-0
• · metal frame: Cold rolled steel sheet, powder coating processing, black sand grain
• · Plastic parts: High impact strength materials, UL 94 V-0 flame retardant grade
• ·working temperature: 70 °C ~ 40 °C

Production standards :

• ·ISO/IEC 11801
• ·TIA/EIA-568-B.2-1
• ·EN50173
• ·UL 94V-0

Application:

• In the network transmission digital and analog voice, data and video signal.
• Applies to all grade E or the application of the channel.
• Applies to each other, between with midpoint that prevent market management, equipment used between subsystems
