| 原産地: | 中国(本土) | 銘柄: | CSYHT | モデル番号: | ODF-R72 | モデル: | ラックマウント式のタイプ | 中心の計算: | 72 | 高さ: | 4U | 次元: | 49x30.5x17.8cm | 重量: | 9kgs | 色: | 白い霜 | 適用: | FTTXのテレコミュニケーション |
包装
| 包装: | 顧客の要求として規則的な輸出カートンのパッケージまたは |

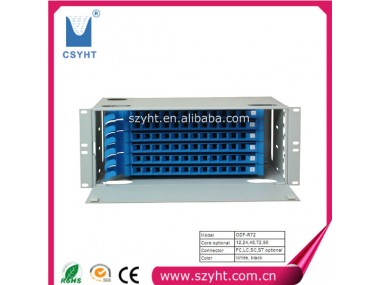

4U height fiber optic distribution frame:
Item: ODF-R72
Rack-mount fiber optic distribution frame is made of cold-rolled steel, modular design, with splice tray units inside and could be pre-installed with various kinds of fiber optic adapters and pigtails. The proper design controls the bend radius of the cable inside the enclosure to avoid extra optical loss.
Features:
+ Modular design with splicing and distribution function
+ 12 cores distribution and splicing unit has the function of storage for maximum 2m pigtail
+ Splice tray units inside changeable
+ Various panel plates to fit different adapter interface
+ Can be fit for the pigtail or ribbon fan-out pigtail, suitable for 19'' or 23'' standard ODF
+ Standard size, light weight and reasonable structure
+ The mark in the front panel is for the easy identification, easy operation
Application:
*Telecommunications subscriber loop
*Fiber to the home (FTTH)
*LAN/WAN
*CATV
Order Information:
Model | Fiber Quantity | Height | Dimension(cm) | Weight(kg) |
ODF-R144 | 144 | 7U | 49x30.5x31.15 | 17 |
ODF-R96 | 96 | 5U | 49x30.5x22.25 | 11 |
ODF-R72 | 72 | 4U | 49x30.5x17.8 | 9 |
ODF-R48 | 48 | 3U | 49x30.5x13.35 | 7 |
ODF-R36 | 36 | 2U | 49x30.5x8.9 | 5.9 |
DOF-R24 | 24 | 2U | 49x30.5x8.9 | 5.4 |
Service:
1.Your question will be answered within 24 working hours.
2.Customers' design or logo are welcomed.
3.ODM and OEM are welcomed.
4.Small order accepted.
5.Samples are available
6.Fast delivery
7.Your feedback will be highly appreciated here.
8.Welcome to contact us.
Details: ODF-R72
