| 原産地: | 中国(本土) | 銘柄: | クロス海 | モデル番号: | cat5e | アプリケーション: | ネットワーキング | heigh: | 1u | 容量: | 24ポート |
包装
| 包装: | 1ピース/箱 |
Summary:

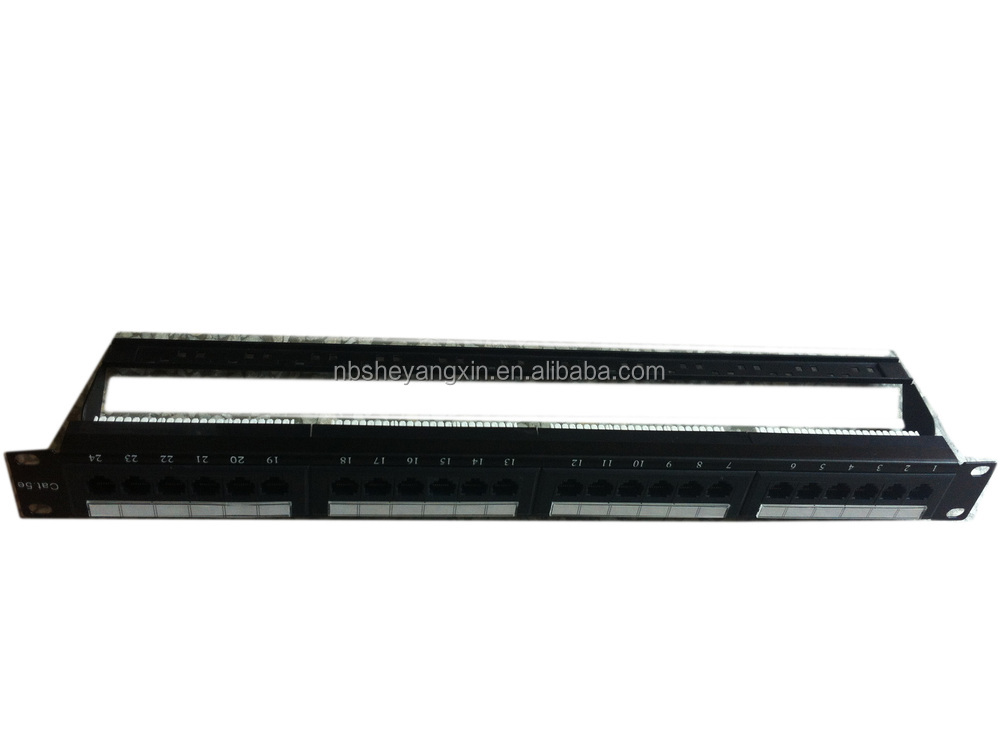

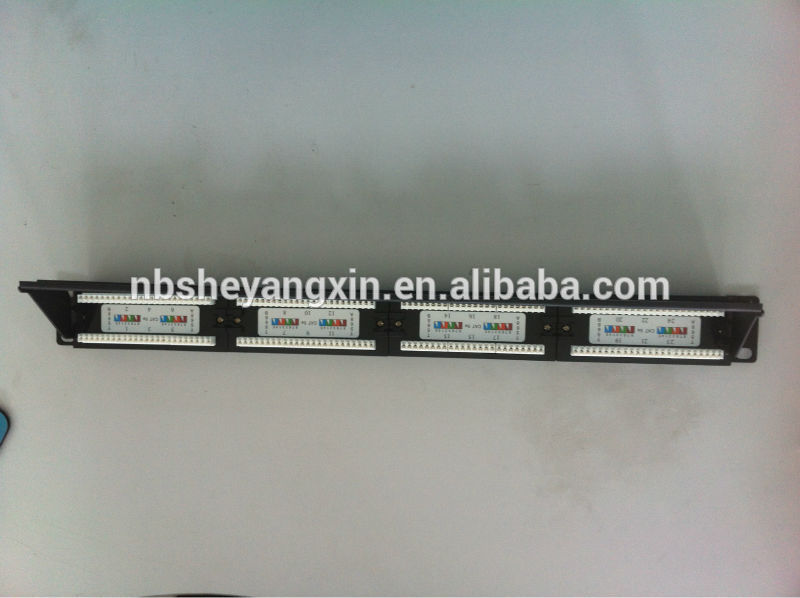

Using for network wiring cabinet, height 2U, each 24 module patch panel can be terminated six and four pairs to connect,the 24port network patch panel use a steel frame, spray, black .with 12 to 48 have been for choice.
Features:

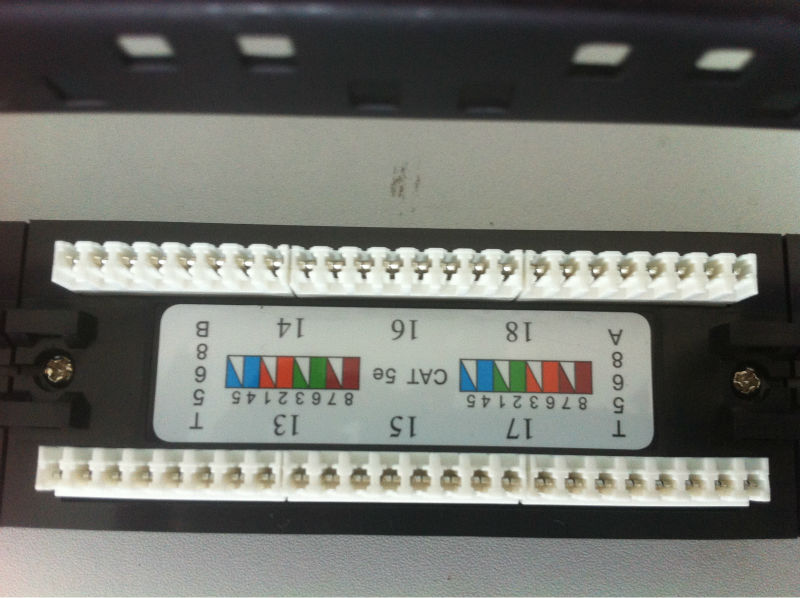

1.RJ45 module socket for the ABS + PC plastic and polycarbonate. Network patch panel should use the tool with standard of 110 type .
2. MDF units with printed circuit board, RJ45 module socket and IDC IDC reed use the phosphor bronze material, good sealing characteristic.
3. To meet the ANSI / TIA / EIA 568A standard enhanced five categories measured in the smallest average 100MHZ.
Technical parameters:
NearCrosstalk:46.5dB
Attenuation of 0.17dB
return loss of 28.4dB The average value:42.0dB
Dielectric strength: DC 1000V 1 minutes without breakdown
Rated current: 1.5A maximum
Insulation resistance: 600MΩ
Contact resistance: 10mΩ max
