| 原産地: | 中国(本土) | 銘柄: | herrman | モデル番号: | PN200-5000 |
包装
| 包装: | をによってパレット。 |
Product Description

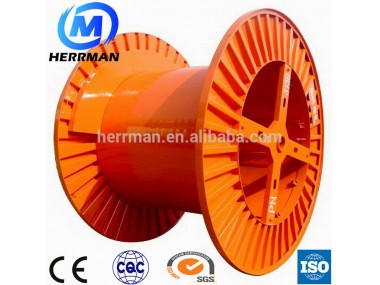

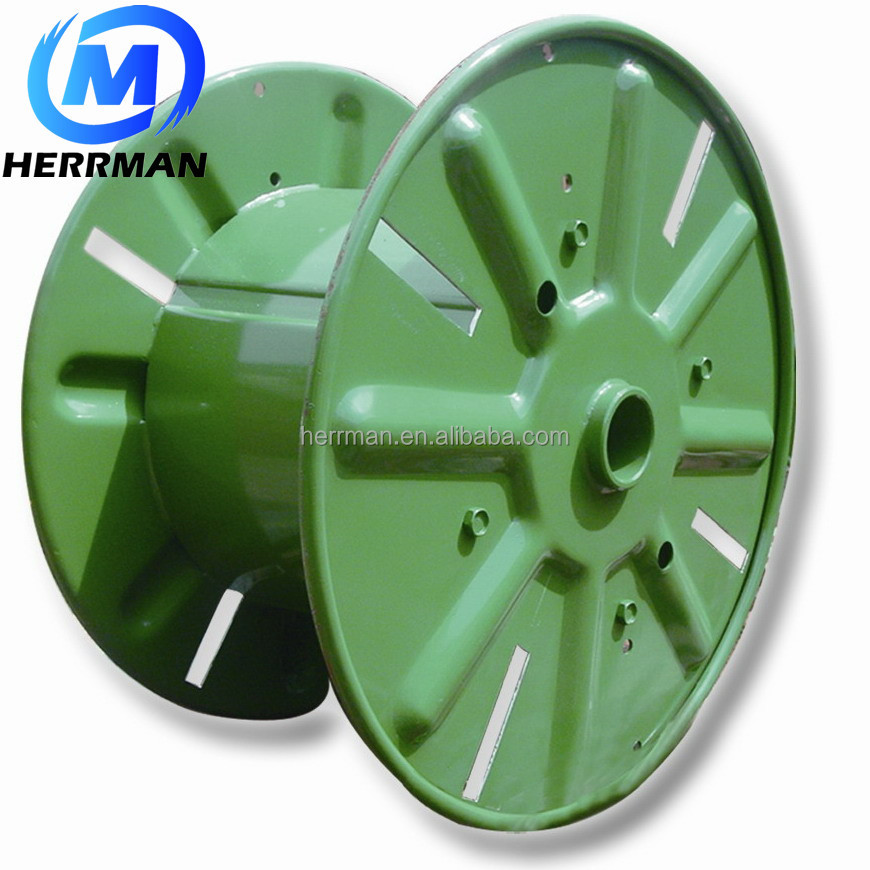

Plastic cable reel
1. Application
Manufactured in accordance with GB4004-83, JB/T7600.3-94 and DIN46395; forming by steel plate stamping and welding; high strengh, high rigidity; light weight; intended for bunching machine, twisting machine, cable-forming machine and extrusion armoring machines, etc.
2. Detailed data
| D1 | D2 | D3 | D4 | D5 | E | L1 | L2 |
| 800 | 400 | 160 | 80 | 40 | 160 | 600 | 500 |
| 900 | 450 | 670 | 560 | ||||
| 1000 | 500 | 750 | 630 | ||||
| 1150 | 560 | 850 | 710 | ||||
| 1250 | 630 | 950 | 800 | ||||
| 1400 | 710 | 65 | 300 | 1060 | 900 | ||
| 1600 | 800 | 1180 | 1000 | ||||
| 1800 | 1000 | 200 | 100 | 1320 | 1120 | ||
| 2000 | 1120 | 250 | 125 | 1500 | 1250 | ||
| 2240 | 1250 | 1700 | 1400 | ||||
| 2500 | 1500 | 1900 | 1600 | ||||
| 2800 | 1800 | 280 | 140 | 2120 | 1800 | ||
| 3150 | 1900 | 300 | 160 | 500 | 2300 | 2000 |

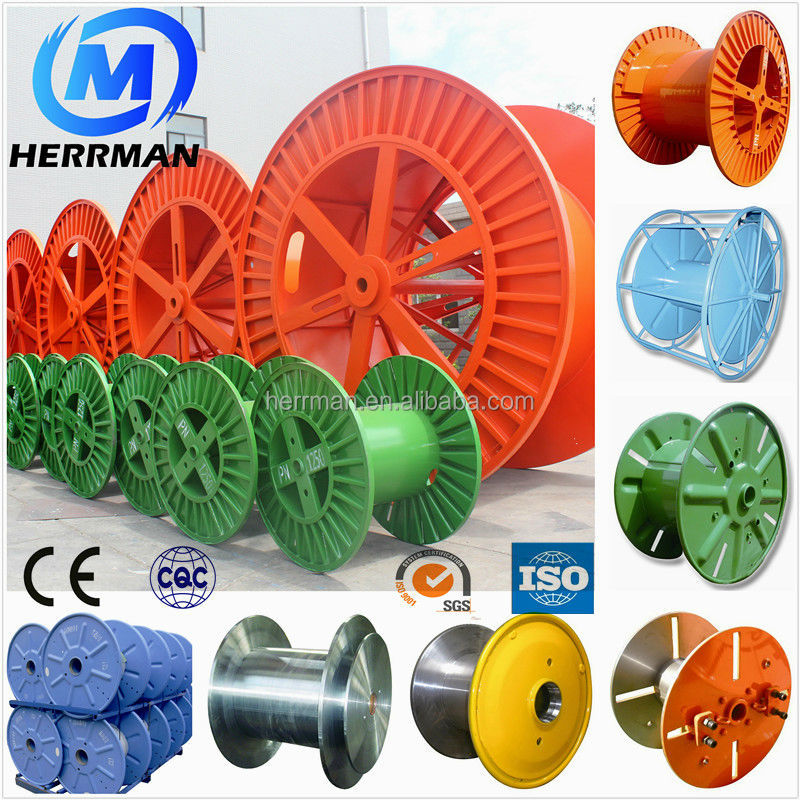

Product Photos
